1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner SP
5
Parts Catalog
Frame/bodywork
6
Parts Diagram
Parts Catalog
Secondary air box
by
Stand/s
Frame/bodywork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
FRAME RUNNER RST
9493305
Not Available
1
Frame with u.p.
624288
Not Available
2
SUPPORTO SERRATURA
298604
$16,40 Unit Price incl. VAT
3
FRAME
9493535
Not Available
4
RONDELLA PIANA
003058
$0,08 Unit Price incl. VAT
5
VITE TE M8X142 PF 8.8
015643
$2,04 Unit Price incl. VAT
6
RONDELLA ELASTICA
016408
$0,08 Unit Price incl. VAT
7
DADO ESAGONALE M8 6H H=6,5
020108
$0,08 Unit Price incl. VAT
8
Bolt
031115
$2,95 Unit Price incl. VAT
9
ROSETTA ELASTICA TIPO "CONTACT"
834187
$0,16 Unit Price incl. VAT
10
RONDELLA PIANA
003058
$0,08 Unit Price incl. VAT
11
MOLLETTA ELASTICA
259933
$0,08 Unit Price incl. VAT
12
Premisphere spring
295590
$4,82 Unit Price incl. VAT
13
Ball D6
295591
$5,38 Unit Price incl. VAT
14
screw
315092
Not Available
15
Gasket
975558
Not Available
16
RONDELLA PIANA
003058
$0,08 Unit Price incl. VAT
17
MOLLETTA ELASTICA
259933
$0,08 Unit Price incl. VAT
18
Premisphere spring
295590
$4,82 Unit Price incl. VAT
19
Ball D6
295591
$5,38 Unit Price incl. VAT
20
screw
315092
Not Available
21
Gasket
975559
Not Available
22
VITE A TESTA BOMB. M8X
582428
$0,34 Unit Price incl. VAT
23
ROSETTA ELASTICA TIPO "CONTACT"
834187
$0,16 Unit Price incl. VAT
24
RH FOOTREST RUNNER
9495275
Not Available
25
LH FOOTREST RUNNER
9495265
Not Available

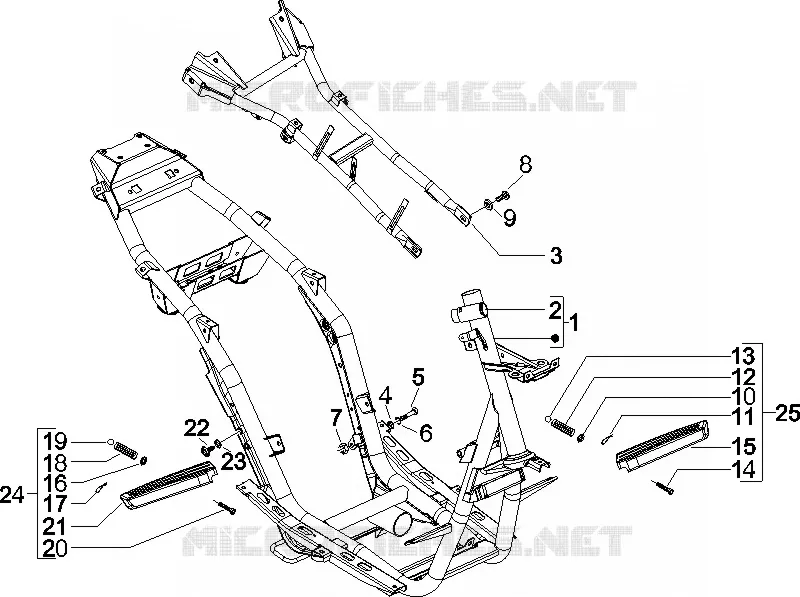

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
