1
Engine displacement
150
2
Model
FLY
3
Year
2009
4
Trim
Fly 4T E3
5
Parts Catalog

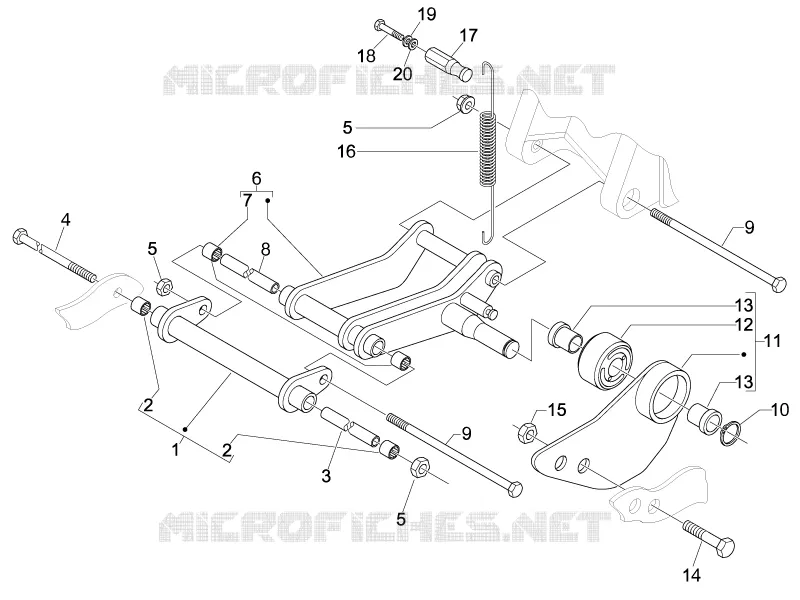

Swinging arm
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Air filter
Swinging arm
1
2
2
3
4
5
5
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
1
Chassis side swinging arm
597495
Not Available
2
Roller cage
597374
Not Available
3
Spacer
CM067802
$8,01 Unit Price incl. VAT
4
Hex screw M10x245
563977
$3,70 Unit Price incl. VAT
5
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
6
Complete swinging arm on engine side
601744
$60,75 Unit Price incl. VAT
7
Roller cage
597374
Not Available
8
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
9
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
10
Circlip
006416
$0,08 Unit Price incl. VAT
11
Bracket
601620
$63,18 Unit Price incl. VAT
12
Silent-block
272750
$12,52 Unit Price incl. VAT
13
Bush
273460
$0,75 Unit Price incl. VAT
14
screw
263381
$4,62 Unit Price incl. VAT
15
Nut
272176
$3,70 Unit Price incl. VAT
16
Spring
564813
$5,38 Unit Price incl. VAT
17
Pin
600309
$3,65 Unit Price incl. VAT
18
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
19
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
20
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
