1
Engine displacement
50
2
Model
RUNNER
3
Year
2005
4
Trim
Runner Pure Jet
5
Parts Catalog

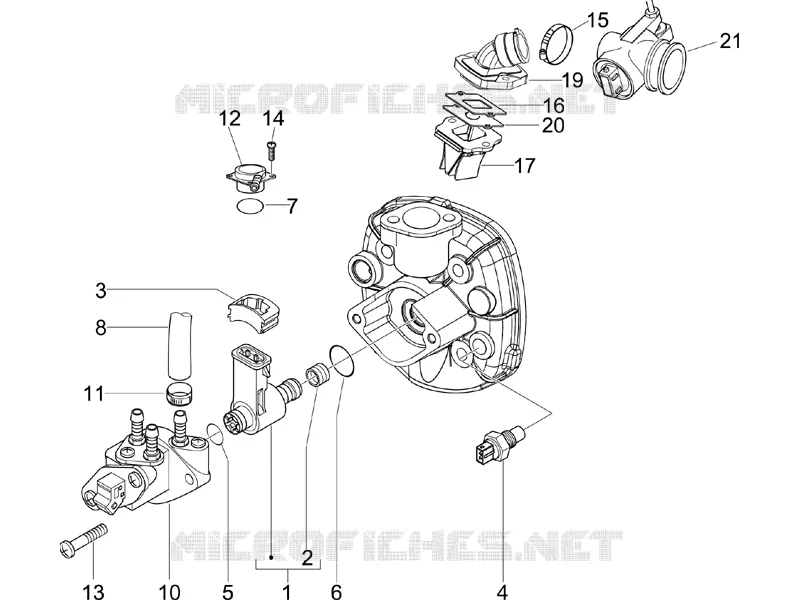

Throttle body - Injector - Union pipe
6
Parts Diagram
Parts Catalog
Reduction unit
by
Silencer
Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
19
20
21
1
Air injector
829480
$278,10 Unit Price incl. VAT
2
Gasket ring
834176
$5,73 Unit Price incl. VAT
3
Seal ring
829483
$0,48 Unit Price incl. VAT
4
Sensor
830093
$56,87 Unit Price incl. VAT
5
O-ring
830433
$0,44 Unit Price incl. VAT
6
O-ring
830434
$1,09 Unit Price incl. VAT
7
O-ring
830585
Not Available
8
High pressure pipe
830672
$2,30 Unit Price incl. VAT
10
fuel rail assembly
841308
$334,80 Unit Price incl. VAT
11
Hose clamp
566745
$3,54 Unit Price incl. VAT
12
Compressor
826949
Not Available
13
TBIC screw
015597
$0,08 Unit Price incl. VAT
14
screw M5x21
015856
$0,16 Unit Price incl. VAT
15
Hose clamp
288741
Not Available
16
Fuel intake valve gasket
433361
$0,19 Unit Price incl. VAT
17
Reeds bracket
82774R
$53,60 Unit Price incl. VAT
19
Intake manifold
829703
Not Available
20
Plate
842626
$1,30 Unit Price incl. VAT
21
Throttle body
830096
$74,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
