1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T Race E3
5
Parts Catalog

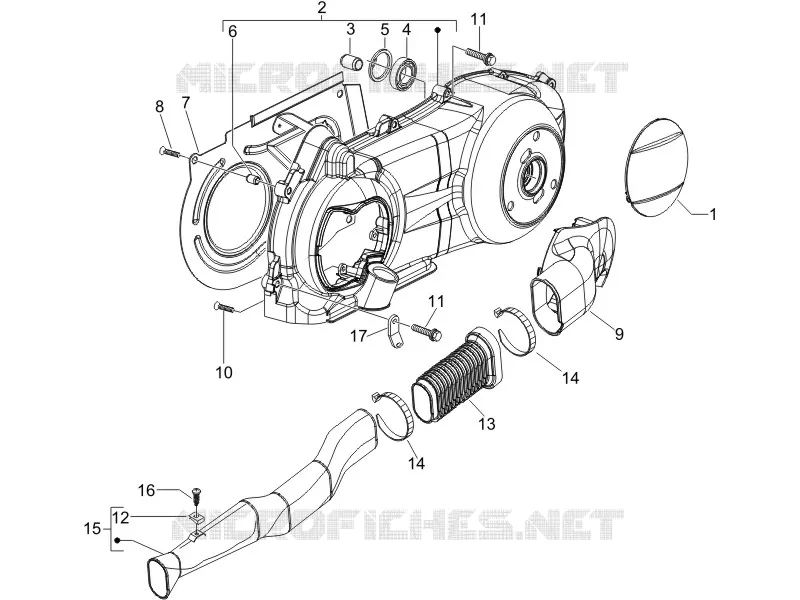

Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Crankcase
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
1
Coverage transmission cover
CM121903
Not Available
2
Transmission cover cpl.
871470
Not Available
3
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
4
Bearing
478985
Not Available
5
Snap ring
006635
$0,25 Unit Price incl. VAT
6
Pin 6,5x9,5x15
239388
Not Available
7
Air deflector
834266
$4,30 Unit Price incl. VAT
8
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
9
Cooling Cover
840959
$5,38 Unit Price incl. VAT
10
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
11
Screw w/ flange M6x30
289731
Not Available
12
Scheibe
CM017411
$5,38 Unit Price incl. VAT
13
Air intake bellows
622214
$4,54 Unit Price incl. VAT
14
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
15
Cooling tube
949470
Not Available
16
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
17
Hose clamp
844964
$0,25 Unit Price incl. VAT
18
Retainer buffer
871458
$1,09 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
