1
Engine displacement
200
2
Model
RUNNER
3
Year
2005
4
Trim
Runner VXR 4T Race
5
Parts Catalog

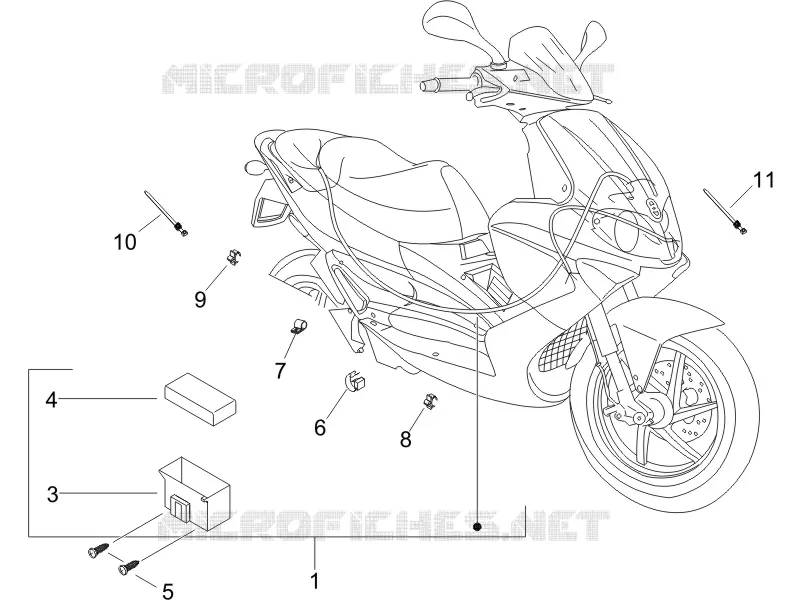

Main cable harness
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Main cable harness
1
3
4
5
6
7
8
9
10
11
1
WIRING HARNESS
639625
Not Available
3
Fuse holder
581190
$7,23 Unit Price incl. VAT
4
Plug
581191
$5,38 Unit Price incl. VAT
5
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
6
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
7
Spring
CM013201
$0,40 Unit Price incl. VAT
8
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
9
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
10
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
11
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
