1
Engine displacement
150
2
Model
FLY
3
Year
2012
4
Trim
Fly 4T E2-E3
5
Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Driven pulley
by
Crankcase cover - Crankcase cooling
Handlebars coverages
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Dashboard lid
6731444090
Not Available
1
Dashboard lid
5A000001
$3,39 Unit Price incl. VAT
1
Dashboard lid
673144
Not Available
2
Handlebar rear cover
67315440XR
Not Available
2
Handlebar rear cover
67315440DE
Not Available
2
Handlebar rear cover
67315400XN
$40,79 Unit Price incl. VAT
2
Handlebar rear cover
673154
Not Available
2
Handlebar rear cover
67315400DE
Not Available
2
Handlebar rear cover
67315400BT
Not Available
2
Handlebar rear cover
67315400MB
Not Available
2
Handlebar rear cover
5A0000390000C
$107,59 Unit Price incl. VAT
2
Handlebar rear cover
67315440XN
Not Available
2
Handlebar rear cover
67315440R7
Not Available
2
Handlebar rear cover
5A000039000M6
$7,17 Unit Price incl. VAT
2
Handlebar rear cover
67315440BT
Not Available
2
Handlebar rear cover
67315440P4
Not Available
3
Front handlebar cover
5A000002000MB
$22,01 Unit Price incl. VAT
3
Handlebar front cover
67315640XN
Not Available
3
Handlebar rear cover
67315600BT
Not Available
3
Handlebar front cover
67315640XR
$49,28 Unit Price incl. VAT
3
Handlebar front cover
67315600DE
Not Available
3
Handlebar front cover
67315640BT
Not Available
3
Front handlebar cover
5A000002000R7
Not Available
3
Handlebar front cover
67315600MB
Not Available
3
Handlebar front cover
67315600XN
Not Available
3
Handlebar front cover
67315640DE
Not Available
3
Handlebar front cover
67315640P4
Not Available
3
Front handlebar cover
5A000002000BT
Not Available
3
Front handlebar cover
5A000002000ND
Not Available
3
Front handlebar cover
5A000002000DE
Not Available
3
Handlebar front cover
67315640R7
Not Available
3
Handlebar front cover
673156
Not Available
3
Front handlebar cover
5A000002
$27,67 Unit Price incl. VAT
4
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
5
Front handlebar cover frame
673143
$9,30 Unit Price incl. VAT
5
Front handlebar cover frame
5A000044
Not Available
6
Rear handlebar cover frame
673155
$16,91 Unit Price incl. VAT
7
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
8
Self tapping screw
CM180702
$0,27 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
11
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
12
Spring plate
CM017409
$0,08 Unit Price incl. VAT
13
Spring plate
008108
$2,95 Unit Price incl. VAT
14
Spring plate
008108
$2,95 Unit Price incl. VAT

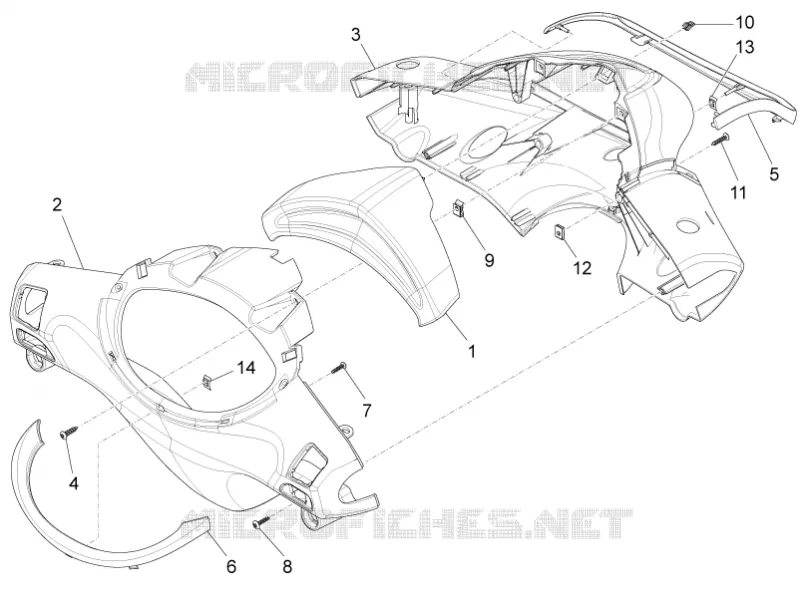

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
