Engine displacement
150
2
Model
FLY
3
Year
2013
4
Trim
Fly 4T E2-E3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Crankcase
by
Head unit - Valve
Front shield
1
2
3
4
5
6
7
8
9
10
11
12
1
Pink front shield
67307240P4
Not Available
1
Front shield
67307200XN
Not Available
1
Front shield
67307240R7
Not Available
1
White front shield
67307240BT
Not Available
1
Front shield
67307200MB
$115,74 Unit Price incl. VAT
1
Front shield
67307240XR
Not Available
1
Front shield
67307200BT
$369,34 Unit Price incl. VAT
1
Blue front shield
67307200DE
Not Available
1
Front shield
67307240DE
Not Available
1
Front shield
67307240XN
Not Available
1
Front shield
673072
$55,19 Unit Price incl. VAT
1
Front shield
67307200ND
$369,34 Unit Price incl. VAT
2
Front grille
673557000C
$8,16 Unit Price incl. VAT
3
screw
CM179202
$0,25 Unit Price incl. VAT
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Left front deflector
673073000C
$12,45 Unit Price incl. VAT
6
Right front deflector
673074000C
$12,45 Unit Price incl. VAT
7
Self tapping screw
297498
$0,08 Unit Price incl. VAT
8
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
9
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
10
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
11
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
11
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT

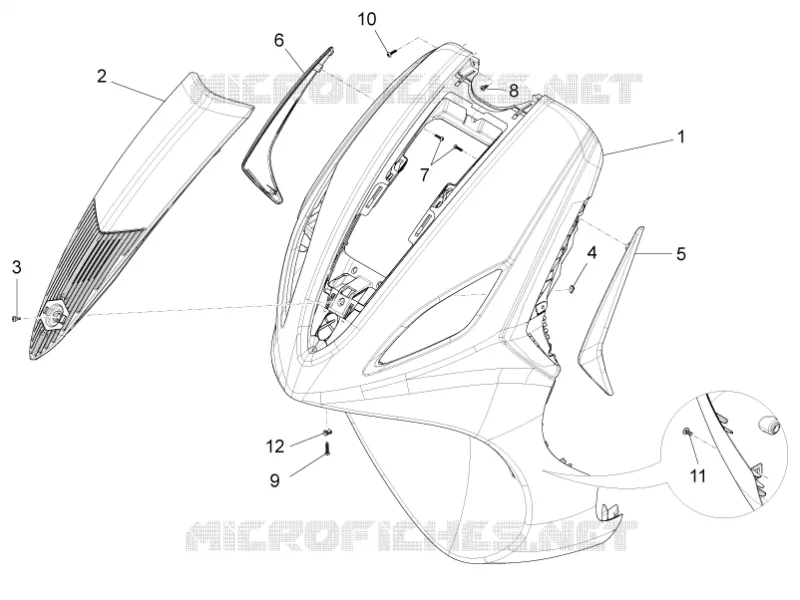

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
