1
Engine displacement
125
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VX 4T Race E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit

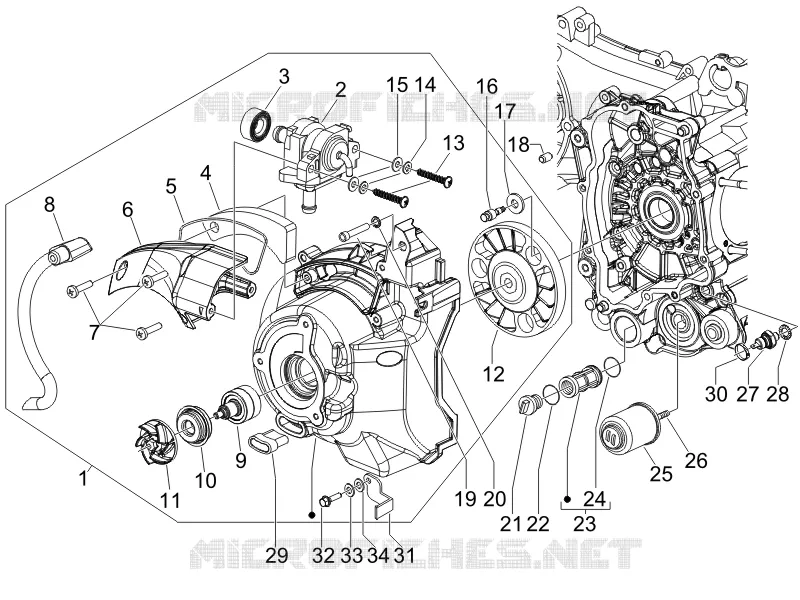

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Flywheel cover cpl.
8482585
$183,00 Unit Price incl. VAT
2
SAS valve
82731R
$89,76 Unit Price incl. VAT
3
Gasket
831256
$4,82 Unit Price incl. VAT
4
Filter
831257
$3,78 Unit Price incl. VAT
5
Gasket
831258
$4,82 Unit Price incl. VAT
6
Cover
831255
$7,69 Unit Price incl. VAT
7
Screw M5x22
828662
$0,25 Unit Price incl. VAT
8
pipe
848080
$43,65 Unit Price incl. VAT
9
Water pump rod with U.P.
845633
Not Available
10
Gasket ring
842595
Not Available
11
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
12
Pump impeller drive key
872908
$7,70 Unit Price incl. VAT
13
Self tapping screw L=35 mm
296458
$2,25 Unit Price incl. VAT
14
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
15
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
16
screw
828569
Not Available
17
Washer
828535
$2,99 Unit Price incl. VAT
18
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
19
screw
828493
$2,95 Unit Price incl. VAT
20
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
21
Oil filter plug
82823R
Not Available
21
Oil filter plug
826165
$5,88 Unit Price incl. VAT
22
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
23
Intake oil filter
483841
$3,55 Unit Price incl. VAT
24
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
25
Oil filter
82635R
$12,36 Unit Price incl. VAT
26
Special screw
483776
$1,49 Unit Price incl. VAT
27
Oil pressure sensor
82580R
$16,59 Unit Price incl. VAT
28
Washer 10.5X16X2.5
486075
$1,58 Unit Price incl. VAT
29
Cover
825529
$5,38 Unit Price incl. VAT
30
Hose clamp
825481
$3,38 Unit Price incl. VAT
31
Cable support bracket
639531
$1,43 Unit Price incl. VAT
32
Screw M5x10
018575
$2,95 Unit Price incl. VAT
33
Washer
828535
$2,99 Unit Price incl. VAT
34
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
