1
Engine displacement
125
2
Model
RUNNER
3
Year
2005
4
Trim
Runner VX 4T
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Brakes pipes - Calipers
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Rear wheel
56390R000G
$110,14 Unit Price incl. VAT
1
REAR WHEEL
94935700B1
Not Available
1
REAR WHEEL
56390R00B1
Not Available
2
Tubeless valve
597679
$3,03 Unit Price incl. VAT
3
Rear tyre 140/60-13" Pirelli
949598
Not Available
3
Tyre (Sava) 140/70-14"
949599
Not Available
4
Brake disc
564573
Not Available
5
Rear wheel hub
598715
$88,52 Unit Price incl. VAT
6
screw
597564
$0,50 Unit Price incl. VAT
7
Self locking nut
597565
$0,50 Unit Price incl. VAT
8
Nut hold cap
194423
$0,48 Unit Price incl. VAT
9
screw M8x30
015792
$0,51 Unit Price incl. VAT
10
Nut M16x13
563728
$1,42 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Split pin
012789
$0,16 Unit Price incl. VAT
13
Spacer
597528
$1,51 Unit Price incl. VAT
14
Wheel spacer
848039
$18,12 Unit Price incl. VAT

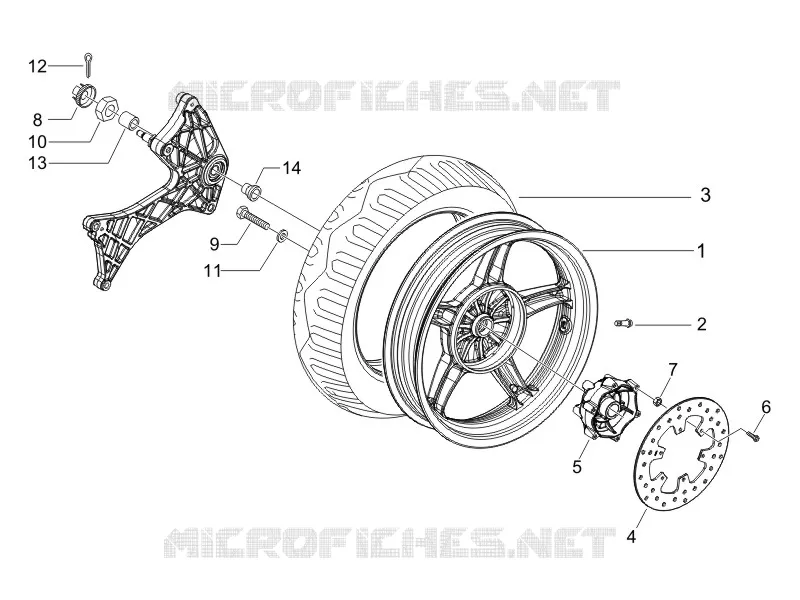

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
