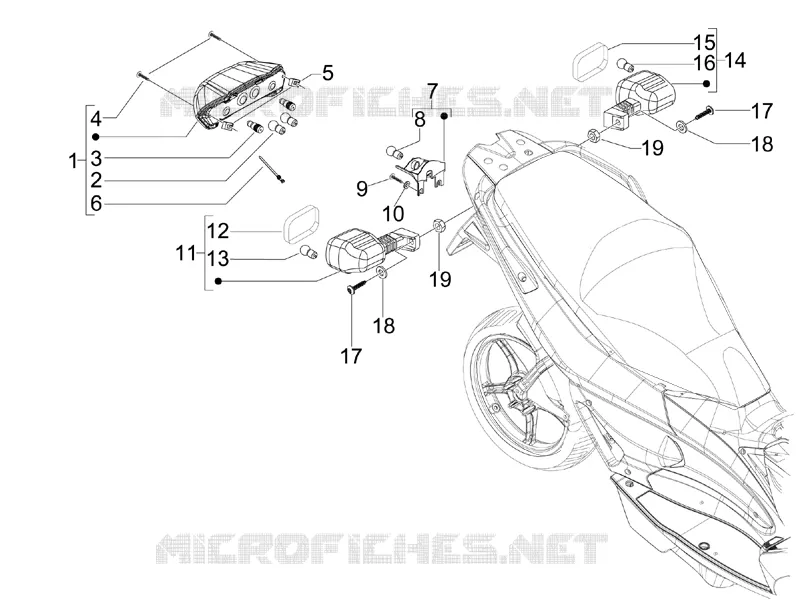

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
1
taillight with bulb
639314
$43,10 Unit Price incl. VAT
2
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
3
Lamp 12V-3W
294131
$5,07 Unit Price incl. VAT
4
screw
296324
$0,15 Unit Price incl. VAT
5
Spring plate M5
248419
$0,67 Unit Price incl. VAT
6
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
7
Rear licence plate light
639088
$14,89 Unit Price incl. VAT
8
Lamp 12V-5W
292022
Not Available
9
screw TBC 3,6x12
018603
$2,95 Unit Price incl. VAT
10
Washer 4,3x8x0,5
003054
$0,08 Unit Price incl. VAT
11
Front left turn indicator
639266
Not Available
12
Turn indicator lens
639338
$4,82 Unit Price incl. VAT
13
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
14
Front right turn indicator
639267
Not Available
15
Turn indicator lens
639338
$4,82 Unit Price incl. VAT
16
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
17
screw
582469
$3,65 Unit Price incl. VAT
18
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
19
Self locking nut
012138
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
