Secondary air box for GILERA PIAGGIO VESPA OREGON from 2010

Secondary air box

1

Filter holder

840473

$41,50 Unit Price incl. VAT

2

VITE

259151

$4,38 Unit Price incl. VAT

3

TUBO DI ASPIRAZIONE SCATOLA S.A.S.

841558

$17,07 Unit Price incl. VAT

4

Screw w/ flange M6x14

833722

Not Available

5

VITE AUTOFILETTANTE (3X20)

258146

$0,25 Unit Price incl. VAT

6

FASCETTA STRINGITUBO

CM001905

$1,38 Unit Price incl. VAT

7

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

8

VALVOLA "S.A.S."

8409485

$101,25 Unit Price incl. VAT

9

SAS valve

82731R

$89,76 Unit Price incl. VAT

10

Screw w/ flange M6x30

289731

Not Available

11

DADO ES.FLG.M6 DIN-6923

288245

$0,16 Unit Price incl. VAT

12

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

13

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

14

Spacer

842934

Not Available

15

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

16

FASCETTA STRINGITUBO

CM002901

$0,09 Unit Price incl. VAT

17

RACCORDO IN GOMMA S.A.S.

840587

$6,30 Unit Price incl. VAT

18

GUARNIZIONE RACCORDO

832059

$4,89 Unit Price incl. VAT

19

TUBO VALVOLA S.A.S.

840585

$13,53 Unit Price incl. VAT

20

TUBO DEPRESSIONE

843400

$5,54 Unit Price incl. VAT

21

CLAMP B125

CM017804

$4,32 Unit Price incl. VAT

23

screw

414835

$0,15 Unit Price incl. VAT

24

Filtering element

840476

$6,35 Unit Price incl. VAT

25

PLATE

840942

Not Available

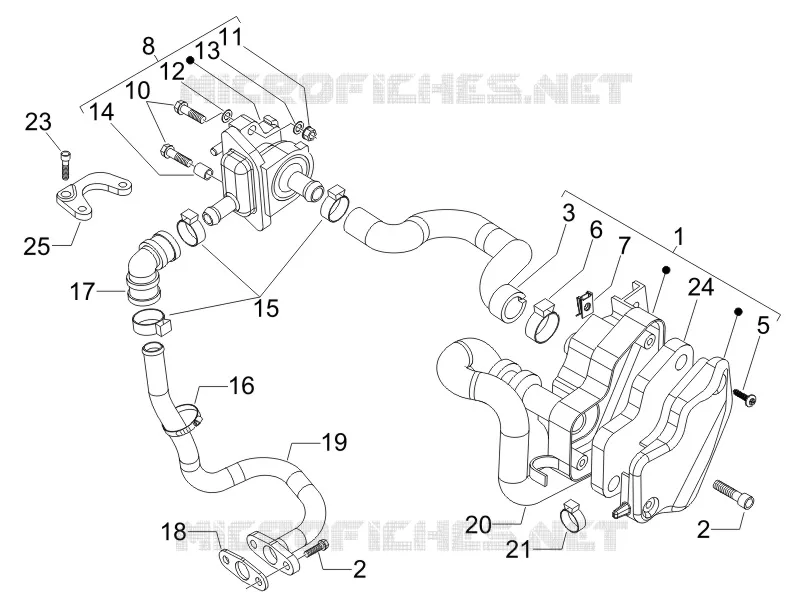

Find the detailed Secondary air box GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
