Braking system for GILERA PIAGGIO VESPA OREGON from 2007

Braking system

1

SPACER TUBE

A5A-54522-00-00

Not Available

2

REAR WHEEL AXLE SEAT

A5A-54521-00-20

Not Available

3

FLANGE BOLT 12X28

95800-12028-02

Not Available

4

FLANGE NUT 12MM

94060-12000-03

Not Available

5

BOLT 12X50

92000-12050-02

Not Available

7

CALIPER STAY,1

A9A-56081-00-00

Not Available

8

DUEL CALIPER ASSY.

A9A-56080-00-00

Not Available

9

PAN HEAD SOCKET BOLT

A5A-56037-00-00

Not Available

10

BRAKE DISC STAY

A5A-56034-00-00

Not Available

11

BRAKE DISC

A5A-56033-00-00

Not Available

12

FLANGE BOLT 10X25

95701-10025-02

Not Available

13

HOSE BOLT

A1A-56027-00-10

Not Available

14

PLATE WASHER

94101-10144-50

Not Available

15

MASTER CYLINDER,2

A9D-56050-00-00

Not Available

16

FLANGE BOLT 8X30

95800-08030-02

Not Available

17

BRAKE PEDEL COMP.

A9D-59610-00-00

Not Available

18

PIN

A9D-59675-00-00

Not Available

19

SPLIT PIN 1.2X22

94251-12221-00

Not Available

21

TENSION SPRING,1

A5A-59652-00-00

Not Available

22

WASHER 19X25X2.0

A5A-59657-00-00

Not Available

23

CIRCLIP

94511-12190-00

Not Available

24

MASTER CYLINDER BRKT

A5A-56035-00-10

Not Available

25

TENSION SPRING,1

A5A-59653-00-10

Not Available

26

FLANGE BOLT 8X14

95800-08014-02

Not Available

27

FLANGE BOLT 6X20

96001-06020-01

Not Available

28

OIL SEAL 42X62X08

91201-42062-08

Not Available

29

BALL BEARING 6007Z

96120-06007-20

Not Available

30

FLANGE BOLT 8X14

95800-08014-02

Not Available

31

Bolt

A1A-56029-00-00

Not Available

32

BRAKE HOSE,2

A9D-56053-00-00

Not Available

33

BRAKE HOSE,3

A9D-56063-00-00

Not Available

34

BRAKE HOSE,4

A9D-56073-00-00

Not Available

35

FLANGE BOLT 8X20

95800-08020-02

Not Available

36

DIVERSION VALVE

A9D-55030-00-00

Not Available

37

COLLER

A9D-55035-00-00

Not Available

38

FLANGE BOLT 6X65

96001-06065-02

Not Available

39

CALIPER STAY,2

A9A-56082-00-01

Not Available

40

CALIPER ASSY.

A9A-56090-00-01

Not Available

41

BRAKE CABLE ASSY.

A9A-68251-00-01

Not Available

42

BRAKE HOSE,1

A9D-56043-00-01

Not Available

43

FLANGE BOLT 6X32

96001-06032-03

Not Available

44

BRAKE HOSE,2

A5A-56043-00-00

Not Available

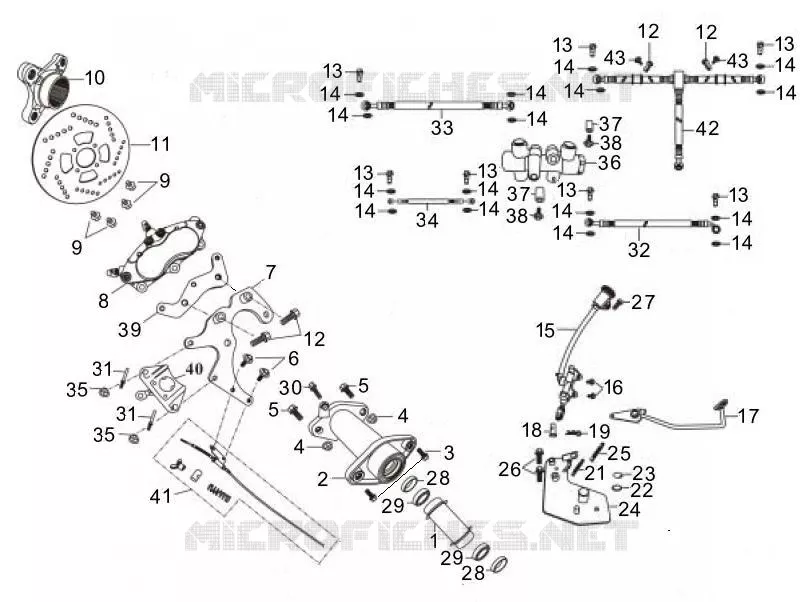

Find the detailed Braking system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
