1
Engine displacement
500
2
Model
NEXUS
3
Year
2007
4
Trim
Nexus E3
5
Parts Catalog
Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Plates - Emblems
by
Reduction unit

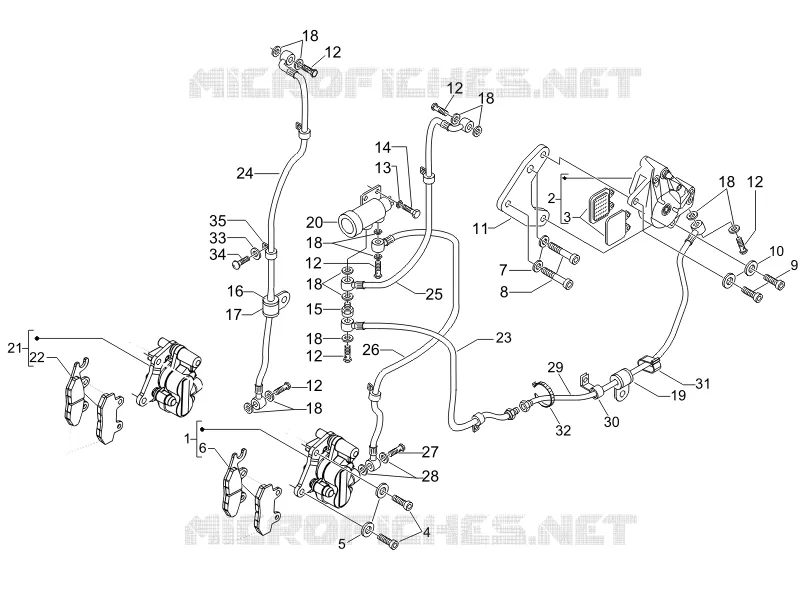

Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
12
12
12
13
14
15
16
17
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Brake caliper
CM072501
Not Available
2
Rear brake caliper (Brembo)
CM067904
Not Available
3
Brake pads kit (Brembo)
647077
$43,20 Unit Price incl. VAT
4
screw M8x30
015792
$0,51 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
Brake pads couple
647074
Not Available
7
Spring washer
709047
$0,08 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
9
screw
598919
$2,27 Unit Price incl. VAT
10
Spring washer
709047
$0,08 Unit Price incl. VAT
11
Caliper support bracket
598060
Not Available
11
Caliper support bracket
649418
$22,29 Unit Price incl. VAT
12
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
13
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
14
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
15
Joint
597033
$4,32 Unit Price incl. VAT
16
Fairlead
230636
$1,60 Unit Price incl. VAT
17
Hose clamp
564836
$2,97 Unit Price incl. VAT
18
Gasket
127927
$0,25 Unit Price incl. VAT
19
Hose clamp
269273
$3,65 Unit Price incl. VAT
20
Valve
56122R
$171,53 Unit Price incl. VAT
21
Brake caliper
CM072502
$446,23 Unit Price incl. VAT
22
Brake pads couple
647074
Not Available
23
BREAK PIPES
600255
$23,22 Unit Price incl. VAT
24
BREAK PIPES
975693
Not Available
25
Brake pipe (valve-pump)
564784
Not Available
26
BREAK PIPES
975694
$33,72 Unit Price incl. VAT
27
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
28
Gasket
127927
$0,25 Unit Price incl. VAT
29
Rear brake stiff pipe
600813
Not Available
30
Plate
136916
$5,38 Unit Price incl. VAT
31
Spring
179013
$0,42 Unit Price incl. VAT
32
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
33
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
34
Hex socket screw
122675
$2,99 Unit Price incl. VAT
35
Hose clamp
307166
$2,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
