1
Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Silencer
6

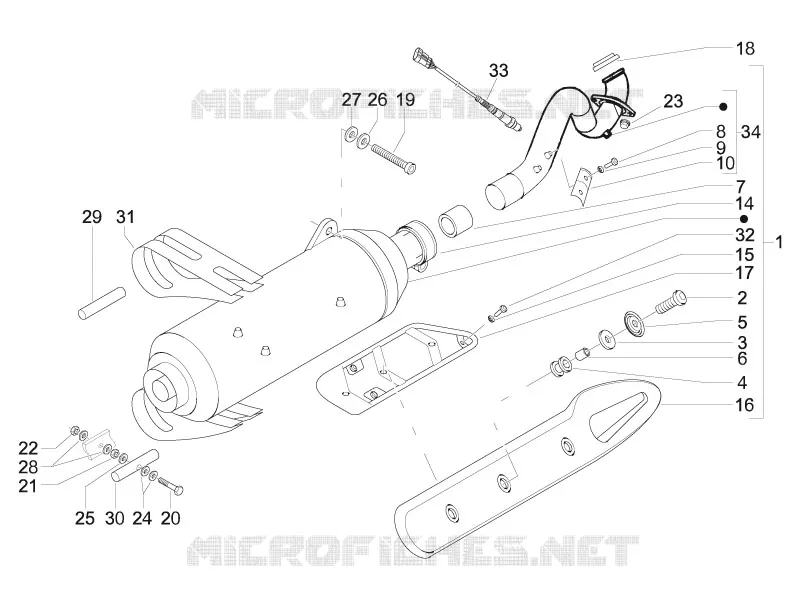

Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Front glove-box - Knee-guard panel
Silencer
1
2
3
4
5
6
7
8
9
10
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
KAT SILENCER COMPLETE WITH PROTECTION
8467535
Not Available
2
Hex socket screw
834038
$0,29 Unit Price incl. VAT
3
Washer
834039
$2,95 Unit Price incl. VAT
4
Spacer
834040
$5,00 Unit Price incl. VAT
5
Stainless steel bowl washer
834643
$4,82 Unit Price incl. VAT
6
Spacer
834041
$5,20 Unit Price incl. VAT
7
Graphite bushing
874946
Not Available
8
screw
833569
$2,95 Unit Price incl. VAT
9
Washer
840782
$4,82 Unit Price incl. VAT
10
Guard
840263
$36,86 Unit Price incl. VAT
14
Hose clamp
840370
Not Available
15
Conical washer
834951
$0,15 Unit Price incl. VAT
16
Protection
849829
$130,65 Unit Price incl. VAT
17
Protection
834046
Not Available
18
Exhaust pipe gasket
828194
$7,94 Unit Price incl. VAT
19
Hex socket screw M8x70
841311
Not Available
20
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
21
Nut M8
020208
$2,95 Unit Price incl. VAT
22
Nut M8
020008
$0,08 Unit Price incl. VAT
23
Flanged nut
015341
$0,42 Unit Price incl. VAT
24
Belleville spring
007608
$2,95 Unit Price incl. VAT
25
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
26
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
27
Washer
840569
$3,65 Unit Price incl. VAT
28
Flat washer
846163
$3,65 Unit Price incl. VAT
29
Pin
599391
$17,07 Unit Price incl. VAT
30
Pin
599392
$8,91 Unit Price incl. VAT
31
Silencer support band
599553
Not Available
32
screw
833569
$2,95 Unit Price incl. VAT
33
Lamda sensor
639806
Not Available
34
Complete exhaust manifold
846758
$99,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
