Engine displacement
500
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus -SP- E3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6

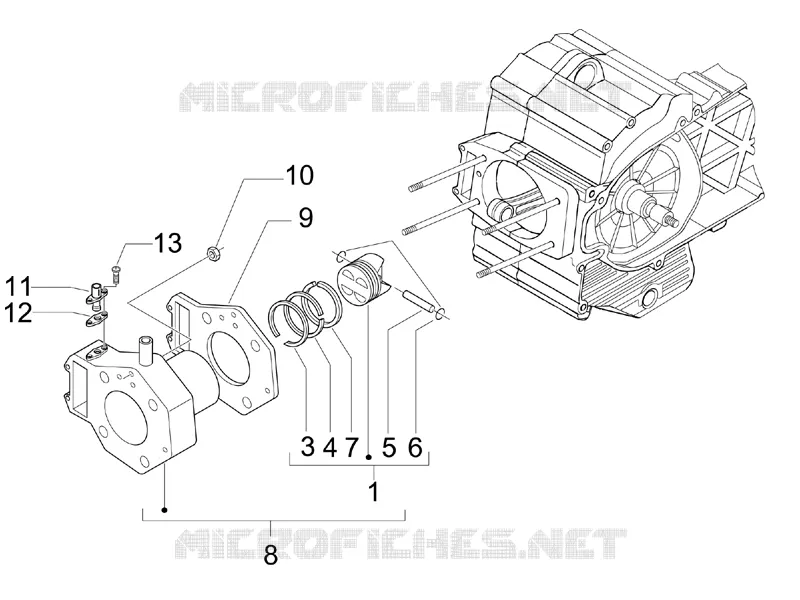

Parts Diagram
Parts Catalog
Driving mirror/s
by
Wheel huosing - Mudguard
Cylinder-piston-wrist pin unit
1
3
4
5
6
7
8
9
10
11
12
13
1
Piston assy cat4
8328120004
Not Available
1
Piston assy
8328120001
Not Available
1
Piston assy cat2
8328120002
Not Available
1
Piston assy cat3
8328120003
Not Available
3
Oil scraper ring d.92
827706
$39,27 Unit Price incl. VAT
4
Oil scraper ring d.92x2,5
827707
Not Available
5
Piston pin
827820
$26,21 Unit Price incl. VAT
6
Stop ring
828116
$0,29 Unit Price incl. VAT
7
Ring
832770
$36,45 Unit Price incl. VAT
8
Cylinder with piston
832811
Not Available
9
Cylinder base gasket 0,6
830276
$4,32 Unit Price incl. VAT
9
Cylinder base gasket 0,4
830277
$3,49 Unit Price incl. VAT
9
Cylinder base gasket 0,8
830275
$4,46 Unit Price incl. VAT
10
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
11
Chain tensioner bracket
289919
Not Available
12
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
