Engine displacement
300
2
Model
NEXUS
3
Year
2010
4
Trim
Nexus ie E3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Fuel tank
by
Side cover - Spoiler
Front shield
1
2
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Front shield
62450300R7
Not Available
1
Front shield
62450300XN2
Not Available
1
Front shield
656911
Not Available
1
Font fairing, blank
624503
$94,99 Unit Price incl. VAT
1
Front shield
62450300BR
Not Available
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
4
Upper front frame
975051000G
Not Available
5
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
6
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
7
Spring plate
CM017410
$0,34 Unit Price incl. VAT
8
Lower front frame
62436900XN2
$34,50 Unit Price incl. VAT
8
Lower front frame
656910
Not Available
8
Lower front frame
62436900R7
$32,47 Unit Price incl. VAT
9
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
10
Right arm
975508000G
Not Available
11
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT
13
FRONT FRAME MAINS
624512
$7,44 Unit Price incl. VAT
14
Self tapping screw
297498
$0,08 Unit Price incl. VAT
15
Grid
975725
$2,85 Unit Price incl. VAT
16
Grid
975726
$2,85 Unit Price incl. VAT
17
Ring
287223
$0,05 Unit Price incl. VAT
18
Washer
599284
$2,25 Unit Price incl. VAT
19
Nut M6
020206
$0,08 Unit Price incl. VAT
20
Ring
287223
$0,05 Unit Price incl. VAT
21
Nut M6
020206
$0,08 Unit Price incl. VAT
22
Left hand guard cover
652848
$79,16 Unit Price incl. VAT
22
Left hand guard cover
65284800R7
Not Available
22
Left hand guard cover
65284800XN2
Not Available
22
Left hand guard cover
65284800BR
Not Available
23
Cover
293717
$0,19 Unit Price incl. VAT
24
Self tapping screw
297498
$0,08 Unit Price incl. VAT
25
Expansion plug
199190
$2,95 Unit Price incl. VAT
26
Hex socket screw M6x30
620365
$0,59 Unit Price incl. VAT
27
Flat washer
269134
$0,08 Unit Price incl. VAT
28
Right hand guard cover
65284900BR
Not Available
28
Right hand guard cover
65284900R7
Not Available
28
Right hand guard cover
65284900XN2
Not Available
28
Right hand guard cover
652849
$32,85 Unit Price incl. VAT
29
Cover
293717
$0,19 Unit Price incl. VAT

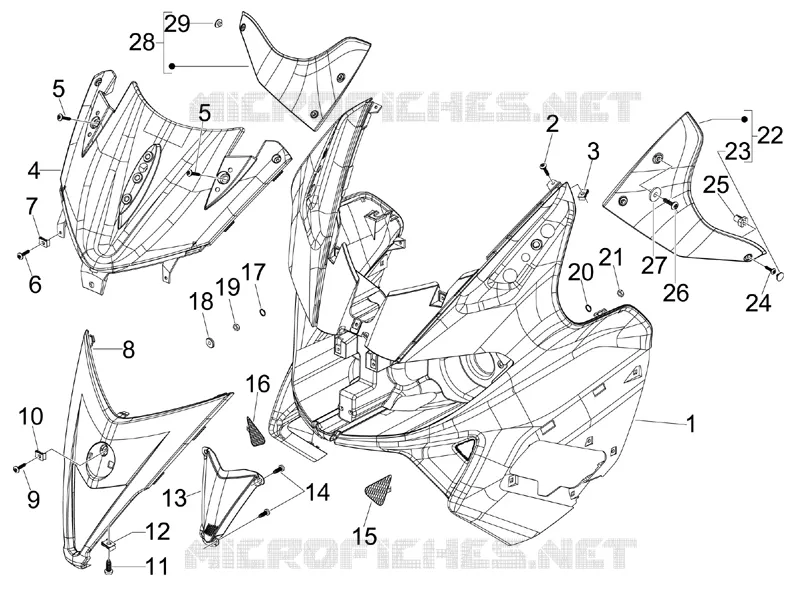

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
