Main cable harness for GILERA PIAGGIO VESPA Nexus -SP- E4 from 2007

Main cable harness

2

MOLLETTA RITEGNO TUBI

CM006902

$0,92 Unit Price incl. VAT

3

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

4

MOLLETTA RITEGNO TUBI

CM006904

$0,25 Unit Price incl. VAT

5

MOLLETTA RITEGNO TUBI/CAVI

CM006905

$1,35 Unit Price incl. VAT

6

MOLLETTA RITEGNO TUBI/CAVI

CM006906

$1,26 Unit Price incl. VAT

7

PIASTRINA ELASTICA

CM017405

$3,65 Unit Price incl. VAT

8

RONDELLA PIANA METALLICA (12x4,2x1)

013763

$0,08 Unit Price incl. VAT

9

VITE AUTOF. TC 3,5x19 UNI 6954-71

015728

$2,95 Unit Price incl. VAT

10

VITE TESTA ESAGON.GAMBO INTER.FILETT.

031091

$0,17 Unit Price incl. VAT

10

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

11

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

12

MOLLETTA ELASTICA

231590

$0,25 Unit Price incl. VAT

13

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

14

VITE

259708

$3,70 Unit Price incl. VAT

15

FASCETTA SMONTABILE

298729

$0,34 Unit Price incl. VAT

16

MANCETTA ADESIVA

577594

$0,42 Unit Price incl. VAT

17

MOLLETTA RITEGNO TUBI

582153

$5,38 Unit Price incl. VAT

18

STAFFA SUPPORTO SENSORE INCL.

584772

$2,52 Unit Price incl. VAT

19

FASCETTA

638792

$4,82 Unit Price incl. VAT

20

GRUPPO CAVETTI STRUMENTI

639764

$19,17 Unit Price incl. VAT

21

FASCETTA

564761

$0,38 Unit Price incl. VAT

22

WIRING HARNESS

639482

Not Available

23

CAP

582172

Not Available

24

RONDELLA ELASTICA BOMBATA

012528

$0,34 Unit Price incl. VAT

25

SCREW

125647

$3,68 Unit Price incl. VAT

26

RONDELLA ELASTICA D16 F6,2

078307

$0,17 Unit Price incl. VAT

27

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

28

RONDELLA ELASTICA BOMBATA

012528

$0,34 Unit Price incl. VAT

29

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

30

VITE TESTA ES. INTERAMENTE FIL. M6x18

031089

$2,99 Unit Price incl. VAT

31

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

31

FUSIBILE

582930

$4,38 Unit Price incl. VAT

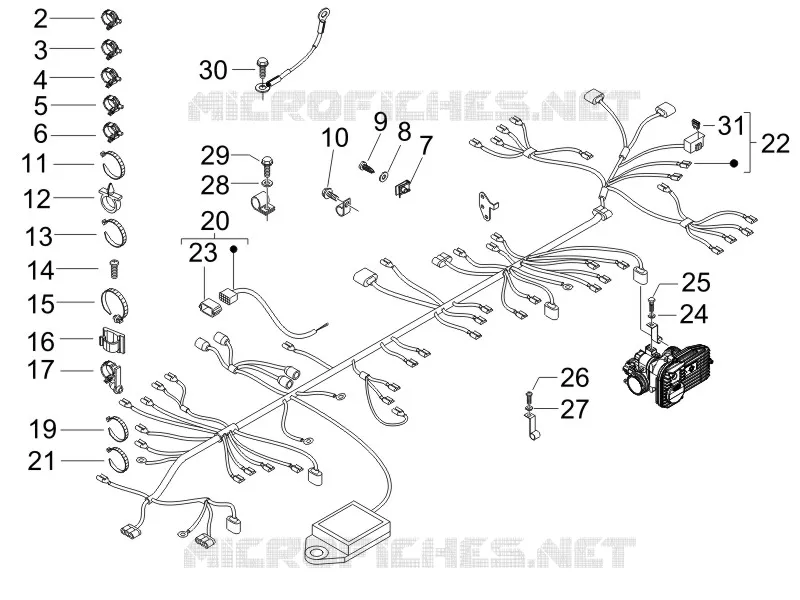

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
