1
Engine displacement
150
2
Model
FLY
3
Year
2007
4
Trim
Fly 4T
5
Parts Catalog

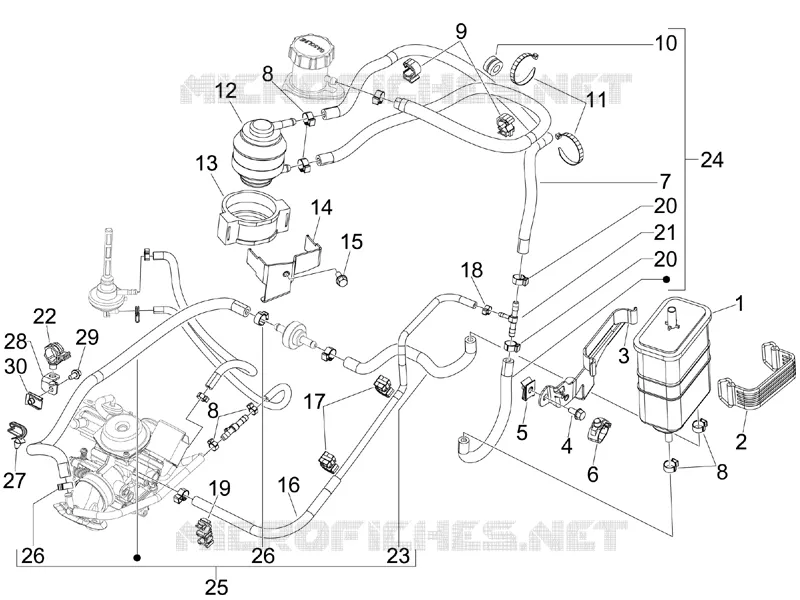

Anti-percolation system
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Crankcase
Anti-percolation system
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
26
27
28
29
30
1
Canister completo di stiker
1B0045715
$67,50 Unit Price incl. VAT
2
Belt
583921
$9,50 Unit Price incl. VAT
3
Bracket
622996
$24,14 Unit Price incl. VAT
4
Screw w/ flange M6x14
833722
Not Available
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
7
pipe L=125mm
CM177902
$5,53 Unit Price incl. VAT
8
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
9
Spring
CM013201
$0,40 Unit Price incl. VAT
10
Upper rubber
351782
$0,34 Unit Price incl. VAT
11
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
12
"Roll-over" valve
CM028204
$68,85 Unit Price incl. VAT
13
Maintenance
576454
$2,30 Unit Price incl. VAT
14
Valve support clamp
622997
$12,04 Unit Price incl. VAT
15
Screw w/ flange M6x14
833722
Not Available
16
pipe
CM007504
Not Available
17
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
18
Hose clamp
CM001911
$3,70 Unit Price incl. VAT
19
Non return spring
CM017809
$4,82 Unit Price incl. VAT
20
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
21
Tee union
828325
$1,57 Unit Price incl. VAT
22
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT
23
pipe L=125mm
CM177902
$5,53 Unit Price incl. VAT
24
Canister piping unit
654612
Not Available
25
Canister pipe/ Complete depressor
654613
Not Available
26
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
27
Hose clamp
217280
Not Available
28
Canister unit plate USA
623206
$8,01 Unit Price incl. VAT
29
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
30
Spring plate M5
248419
$0,67 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
