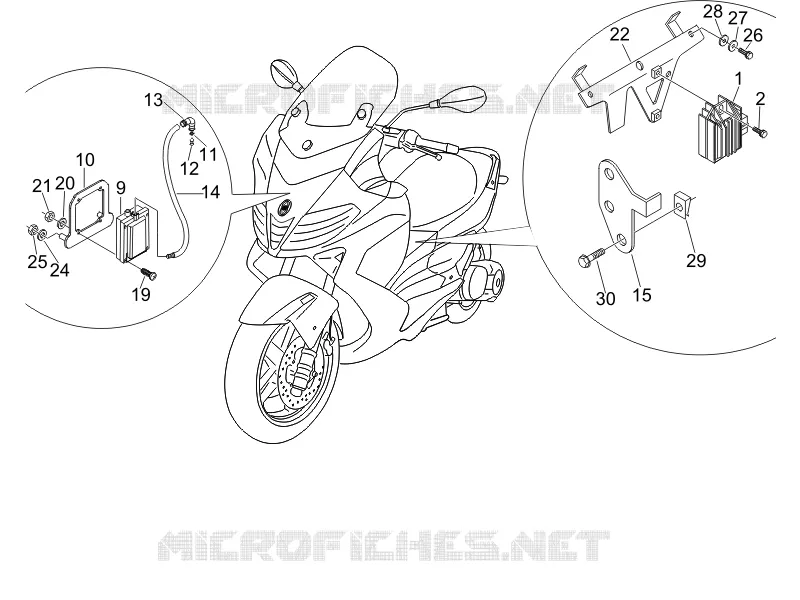

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
9
10
11
12
13
14
15
19
20
21
22
24
25
26
27
28
29
30
1
Voltage regulator
58086R
Not Available
2
Screw w/ flange
828863
$0,09 Unit Price incl. VAT
9
HT coil
58120R
$65,76 Unit Price incl. VAT
10
H.T COIL BRACKET
640591
$6,96 Unit Price incl. VAT
11
Protection collar
436919
$1,45 Unit Price incl. VAT
12
End cap
015014
$4,82 Unit Price incl. VAT
13
Screened cap
293845
$6,14 Unit Price incl. VAT
13
Insulating cap
071671
$1,29 Unit Price incl. VAT
14
H.V. cable
080341
$5,89 Unit Price incl. VAT
15
Bracket
584772
$2,52 Unit Price incl. VAT
19
screw M3x20
583236
$3,70 Unit Price incl. VAT
20
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
21
Nut M 3
020003
$2,27 Unit Price incl. VAT
22
Voltage regulator support
640615
Not Available
24
Flat washer
006125
$0,16 Unit Price incl. VAT
25
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
26
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
27
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
28
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
29
Spring plate M6
254485
$0,34 Unit Price incl. VAT
30
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
