1
Engine displacement
250
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus E3
5
Parts Catalog
Stand/s
6

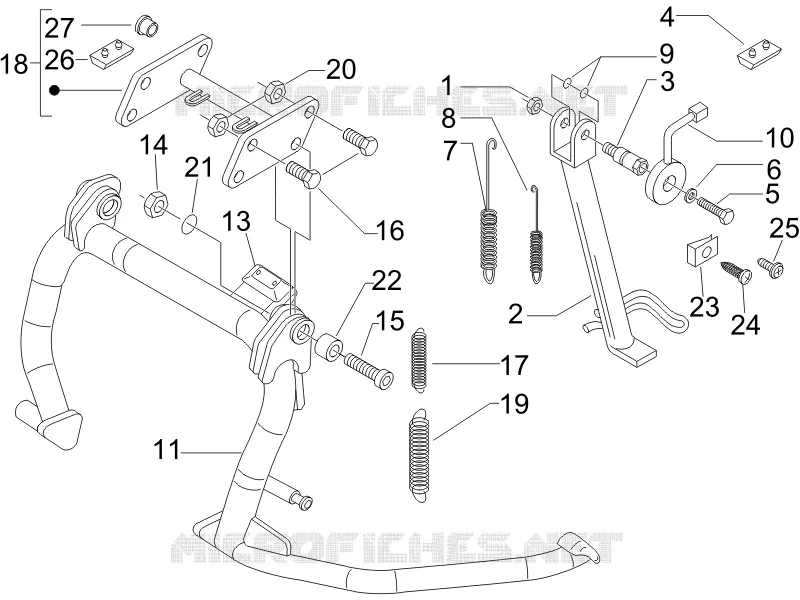

Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Crankcase
Stand/s
27
17
8
26
25
24
23
22
21
20
19
18
16
15
14
13
11
10
9
7
6
5
4
3
2
1
1
Self locking nut M10
232108
Not Available
1
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
2
Side Stand with i.p.
647473
$19,22 Unit Price incl. VAT
3
Sec. screw
583155
$5,90 Unit Price incl. VAT
4
Stop buffer
164245
$0,97 Unit Price incl. VAT
5
Hex socket screw M5x16
292889
Not Available
6
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
7
Spring
295789
$4,82 Unit Price incl. VAT
8
Spring
295788
$4,82 Unit Price incl. VAT
9
Gasket
191189
$0,17 Unit Price incl. VAT
10
Button for side stand
639542
$41,85 Unit Price incl. VAT
11
CENTRAL STAND X9
601893
Not Available
11
Central stand
56449R
Not Available
13
Pad
272426
Not Available
14
Self locking nut M10
232108
Not Available
14
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
15
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
16
Bolt
031153
$3,65 Unit Price incl. VAT
17
Internal lateral stand spring
582850
$4,89 Unit Price incl. VAT
18
COMPLETE SIDE STAND COUPLING PLATE
647616
Not Available
19
Lateral stand spring
582851
$4,89 Unit Price incl. VAT
20
Self locking nut M10
232108
Not Available
20
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
21
O-ring
273754
$0,16 Unit Price incl. VAT
22
Spacer
582298
$3,27 Unit Price incl. VAT
23
Spring plate
CM017410
$0,34 Unit Price incl. VAT
24
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
25
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
26
Silent-block
272750
$12,52 Unit Price incl. VAT
27
Bush
273460
$0,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
