by

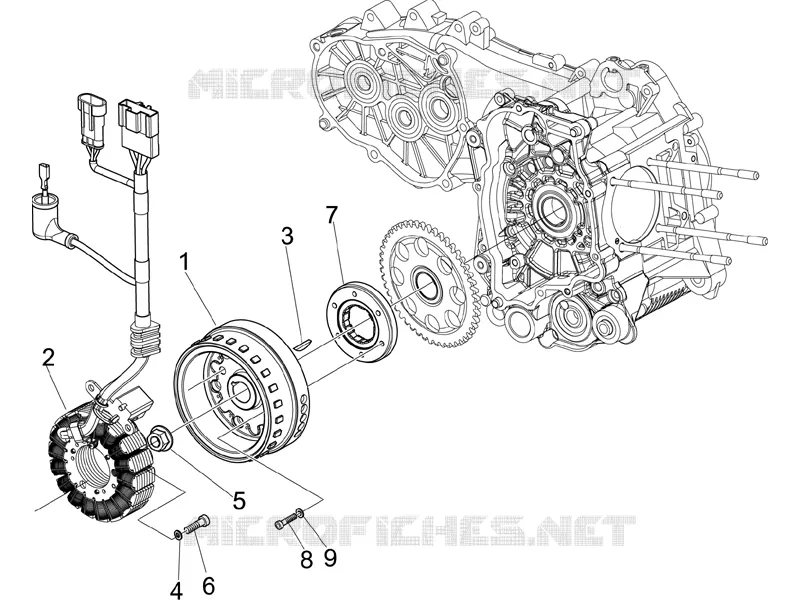

Flywheel magneto
1
2
3
4
5
6
7
8
9
1
Rotor, assy.
58196R
$52,65 Unit Price incl. VAT
1
Rotor
58109R
$51,30 Unit Price incl. VAT
2
Complete stator (with 2 cables)
58108R
$159,30 Unit Price incl. VAT
3
Transmission key
000097
$5,21 Unit Price incl. VAT
4
Flat washer 14.1x30x3
825725
$1,77 Unit Price incl. VAT
5
Nut M14x1,5
827116
$1,60 Unit Price incl. VAT
6
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
7
Starter clutch assy.
8313225
Not Available
7
Complete freewheel
8494905
$51,70 Unit Price incl. VAT
8
Hex socket screw M6x25
840893
$0,41 Unit Price incl. VAT
8
Hex socket screw M6x25
877288
$0,34 Unit Price incl. VAT
9
Break washer
479515
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
