Engine displacement
500
2
Model
FUOCO
3
Year
2011
4
Trim
Fuoco E3
5
Parts Catalog
Main cable harness
6

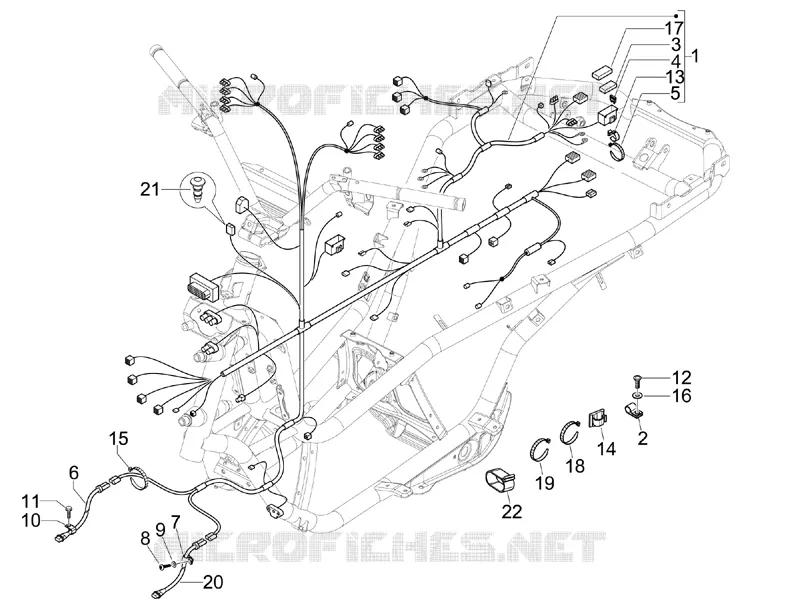

Parts Diagram
Parts Catalog
Reduction unit
by
Front headlamps - Turn signal lamps
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Cable harness
640611
Not Available
1
Cable harness
642631
$1 232,37 Unit Price incl. VAT
2
Metallic clamp
640590
$5,53 Unit Price incl. VAT
3
Cap
582172
Not Available
3
Cap
581061
$1,37 Unit Price incl. VAT
4
Fuse 30A
581440
Not Available
4
Fuse 20A
580561
$0,42 Unit Price incl. VAT
4
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
4
Reed fuse 3a
582930
$4,38 Unit Price incl. VAT
4
Fuse 15A
290860
$5,73 Unit Price incl. VAT
5
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
6
Right speed sensor cable assembly
642549
$35,36 Unit Price incl. VAT
6
Right speed sensor cable assembly
640959
Not Available
6
Right speed sensor cable assembly
639566
Not Available
7
Hose clamp
271477
$3,65 Unit Price incl. VAT
8
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
9
Washer
013963
$0,19 Unit Price incl. VAT
10
Hose clamp
573918
$1,09 Unit Price incl. VAT
11
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
12
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
13
Connector spring
584520
$5,38 Unit Price incl. VAT
14
Spring clamp
577594
$0,42 Unit Price incl. VAT
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Washer
012528
$0,34 Unit Price incl. VAT
17
Cap
292577
Not Available
18
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
19
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
20
Left speed sensor cable assembly
640960
Not Available
20
Left speed sensor cable assembly
639567
Not Available
20
Left speed sensor cable assembly
642550
$35,36 Unit Price incl. VAT
21
Ambient temperature sensor
581142
Not Available
22
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
