Engine displacement
500
2
Model
FUOCO
3
Year
2014
4
Trim
Fuoco 4T-4V ie E3 LT
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Control pedals - Levers
by
Fork/steering tube - Steering bearing unit
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
1
MANUBRIO CON P.I.
65375900EQ
$253,91 Unit Price incl. VAT
1
MANUBRIO CON P.I.
653759000C
$150,29 Unit Price incl. VAT
2
VITE A TESTA CILINDRICA ESAGONO INCASS.
655554
$3,70 Unit Price incl. VAT
3
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
4
RONDELLA ELASTICA PIANA DENT.INTERNA
012543
$0,08 Unit Price incl. VAT
5
ECROU
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM079716
Not Available
7
MANOPOLA DESTRA
271453
$13,37 Unit Price incl. VAT
8
MANOPOLA SINISTRA
271452
$13,37 Unit Price incl. VAT
9
Throttle opening transmission
649499
Not Available
10
Throttle closing transmission
649500
Not Available
11
TERMINALE
673339
$2,66 Unit Price incl. VAT
12
screw M6x55
271434
Not Available
13
GR.POMPA IDRAULICA FRENO DX
56359R
$55,35 Unit Price incl. VAT
13
POMPA IDRAULICA FRENO
CM077414
$126,91 Unit Price incl. VAT
14
LEVA FRENO
646829
$27,00 Unit Price incl. VAT
15
PERNO
650651
$5,38 Unit Price incl. VAT
16
CAVALLOTTO RIF.110437262
497343
$15,31 Unit Price incl. VAT
17
GR.POMPA IDRAULICA FRENO SX
56360R
$55,35 Unit Price incl. VAT
18
LEVA FRENO
646829
$27,00 Unit Price incl. VAT
18
LEVA FRENO
600475
$11,82 Unit Price incl. VAT
19
PONTICELLO POMPA FRENO COMPL.
600478
$11,06 Unit Price incl. VAT
19
CAVALLOTTO RIF.110437262
497343
$15,31 Unit Price incl. VAT
20
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT

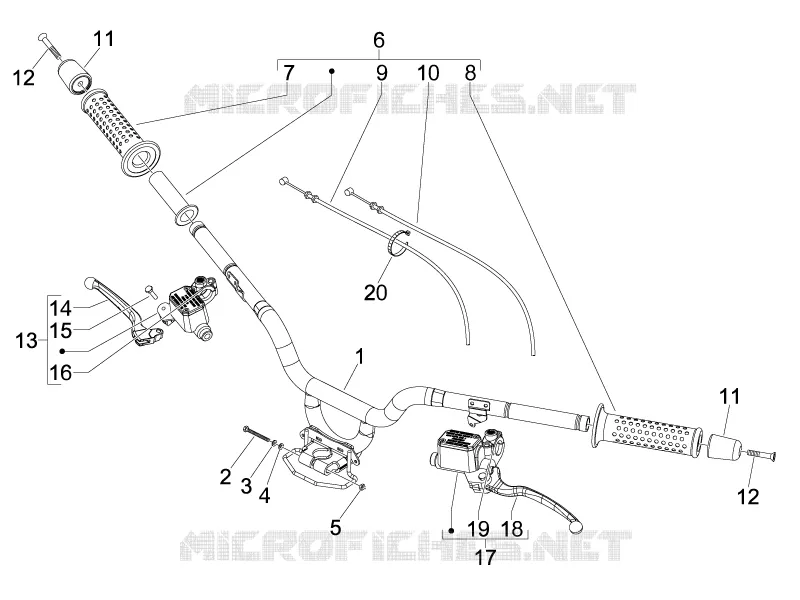

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
