1
Engine displacement
50
2
Model
DNA
3
Year
2006
4
Trim
DNA
5
Parts Catalog

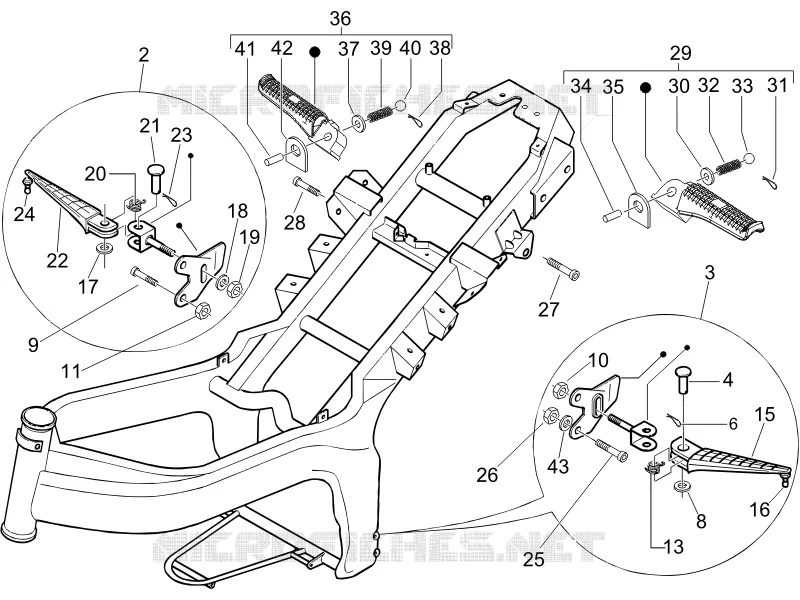

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Stand/s
by
Side cover - Spoiler
Central cover - Footrests
2
3
4
6
8
9
10
11
13
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
2
Rubber mat r.h.
CM012502
$79,43 Unit Price incl. VAT
3
Not available
CM012501
$79,43 Unit Price incl. VAT
4
Pin
295593
$4,82 Unit Price incl. VAT
6
Spring
943021
Not Available
8
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
9
screw M8x30
015792
$0,51 Unit Price incl. VAT
10
Nut M10 6H
020110
$0,15 Unit Price incl. VAT
11
Nut M8
020008
$0,08 Unit Price incl. VAT
13
Elastic spring
259933
$0,08 Unit Price incl. VAT
15
LH FOOTREST
943016
Not Available
16
Pawl
943027
Not Available
17
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
18
Washer 17,6x11x2,5
016410
$1,55 Unit Price incl. VAT
19
Nut M10 6H
020110
$0,15 Unit Price incl. VAT
20
Elastic spring
259933
$0,08 Unit Price incl. VAT
21
Pin
295593
$4,82 Unit Price incl. VAT
22
RH FOOTREST
943017
Not Available
23
Spring
943021
Not Available
24
Pawl
943027
Not Available
25
screw M8x30
015792
$0,51 Unit Price incl. VAT
26
Nut M8
020008
$0,08 Unit Price incl. VAT
27
screw
436787
Not Available
28
screw
436787
Not Available
29
Footrest passenger
576910
Not Available
30
Washer
006177
$0,11 Unit Price incl. VAT
31
Elastic spring
259933
$0,08 Unit Price incl. VAT
32
Premisphere spring
295590
$4,82 Unit Price incl. VAT
33
Ball D6
295591
$5,38 Unit Price incl. VAT
34
Pin
295593
$4,82 Unit Price incl. VAT
35
Rubber mat stop foot rest
573956
$0,27 Unit Price incl. VAT
36
Footrest passenger
576911
Not Available
37
Washer
006177
$0,11 Unit Price incl. VAT
38
Elastic spring
259933
$0,08 Unit Price incl. VAT
39
Premisphere spring
295590
$4,82 Unit Price incl. VAT
40
Ball D6
295591
$5,38 Unit Price incl. VAT
41
Pin
295593
$4,82 Unit Price incl. VAT
42
Rubber mat stop foot rest
573956
$0,27 Unit Price incl. VAT
43
Washer 17,6x11x2,5
016410
$1,55 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
