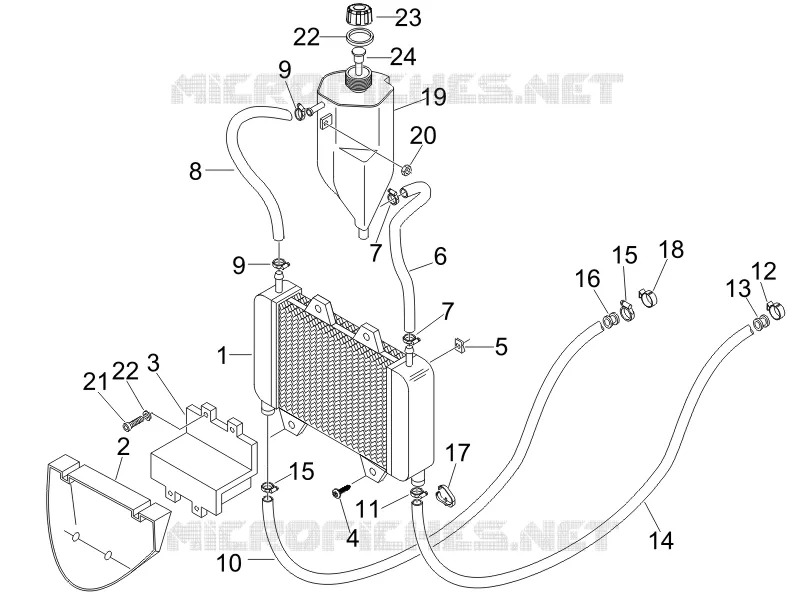

Cooling system
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
22
23
24
1
Water cooler
299389
Not Available
2
Air deflector
575710
Not Available
3
plate
576179
Not Available
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Return pipe
575706
Not Available
7
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
8
Oil delivery pipe
CM007001
$2,61 Unit Price incl. VAT
9
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
10
Oil delivery pipe
577676
Not Available
11
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
12
Hose clamp
CM001909
$3,65 Unit Price incl. VAT
13
Fairlead
178610
$2,97 Unit Price incl. VAT
14
pipe
577677
Not Available
15
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
16
Fairlead
178610
$2,97 Unit Price incl. VAT
17
Hose clamp
CM006901
$4,62 Unit Price incl. VAT
18
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
19
Fuel tank
575705
Not Available
20
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
21
screw M6x14
296170
$2,95 Unit Price incl. VAT
22
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
22
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
23
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
24
Level gauge
575840
$0,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
