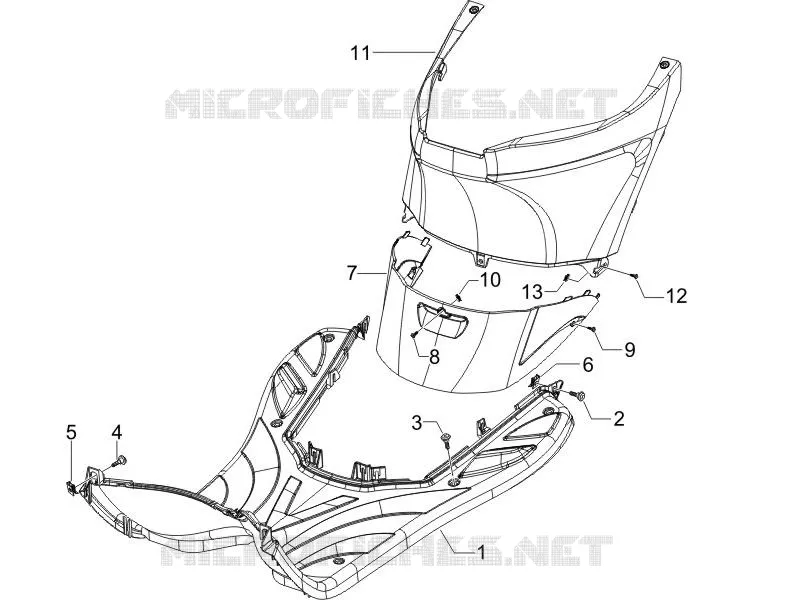

Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Footrest
57664900G7
Not Available
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
3
Self-tap screw
576189
$0,05 Unit Price incl. VAT
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
Spring plate
CM017410
$0,34 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Spark plug access cover
575404000C
$3,80 Unit Price incl. VAT
7
Tyre
57540400G7
$7,99 Unit Price incl. VAT
8
Self-tap screw
576189
$0,05 Unit Price incl. VAT
9
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
10
Spring plate
CM017410
$0,34 Unit Price incl. VAT
11
Helmet compartment cover
575405000C
$10,33 Unit Price incl. VAT
11
Helmet compartment cover
57540500G7
$11,21 Unit Price incl. VAT
12
Self-tap screw
576189
$0,05 Unit Price incl. VAT
13
Spring plate
CM017410
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
