Handlebars - Master cil. for GILERA PIAGGIO VESPA Zip 4T from 2006

Handlebars - Master cil.

1

Handlebar

583068

Not Available

2

Cone

583840

$3,28 Unit Price incl. VAT

3

Tie rod

582446

$1,37 Unit Price incl. VAT

4

Metric screw TBC

259348

$2,99 Unit Price incl. VAT

5

Washer d6,2x20x1

013092

$0,17 Unit Price incl. VAT

6

Spring plate M6

254485

$0,34 Unit Price incl. VAT

7

Washer

563327

$0,38 Unit Price incl. VAT

8

Screw with bushing

123394

$3,70 Unit Price incl. VAT

9

Ring 38,3x27x1,2

562923

$2,99 Unit Price incl. VAT

10

RH hand grip

274491

$12,19 Unit Price incl. VAT

11

Grip, l.h.

274489

$13,41 Unit Price incl. VAT

12

LH Hose

CM063803

Not Available

13

Screw with nut

265249

$3,70 Unit Price incl. VAT

14

Screw with bushing

123394

$3,70 Unit Price incl. VAT

15

Spring

267948

$4,89 Unit Price incl. VAT

16

Brake lever

564682

$2,80 Unit Price incl. VAT

17

stop Button

580645

Not Available

18

Brakes pump

56019R

Not Available

19

Cover

498373

Not Available

20

Brake lever (blakc)

564678

$26,45 Unit Price incl. VAT

20

Brake lever Heng Tong

646832

Not Available

21

Complete throttle control sleeve

646839

$39,20 Unit Price incl. VAT

22

SP1 China gas transmission

646791

$11,75 Unit Price incl. VAT

23

Nut M6

020206

$0,08 Unit Price incl. VAT

24

Guard

147511

$2,95 Unit Price incl. VAT

25

Adjuster screw

269145

$1,30 Unit Price incl. VAT

26

Nut M8

020208

$2,95 Unit Price incl. VAT

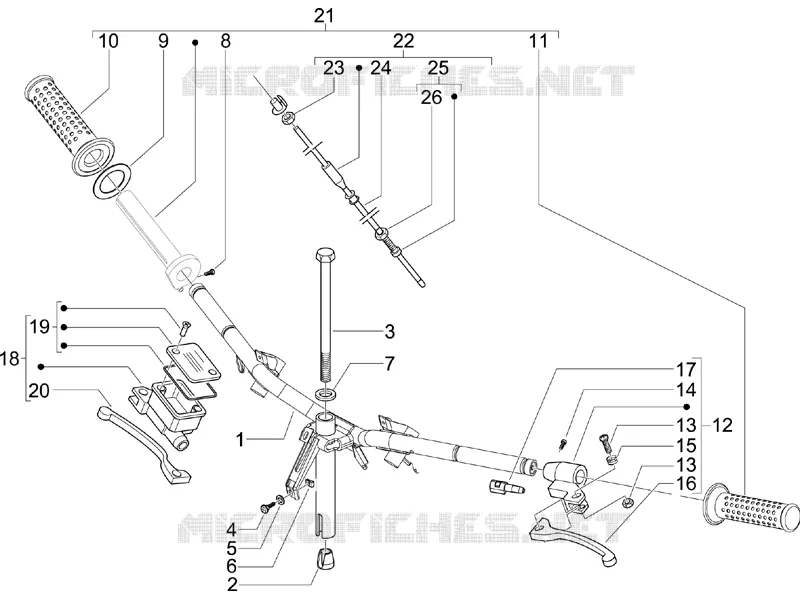

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
