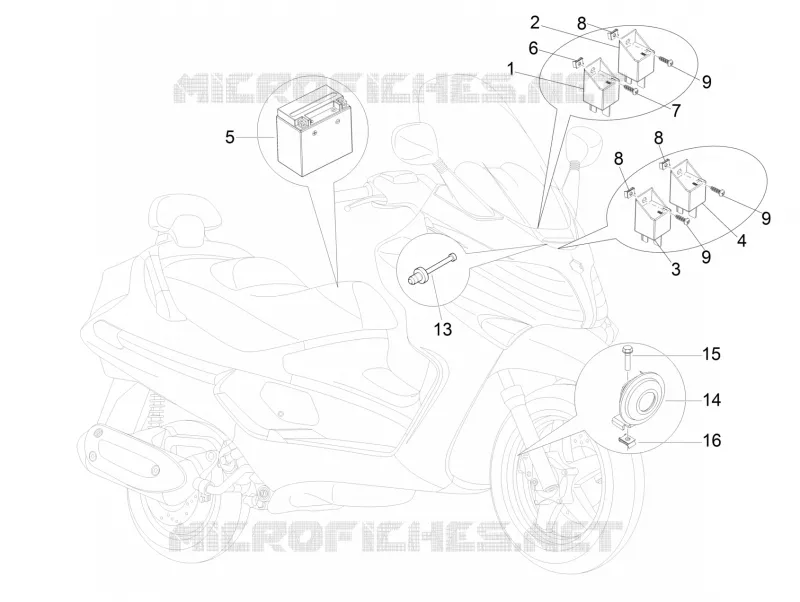

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
8
8
9
9
9
13
14
15
16
1
Switch electromagnetic switch 12V-40/15A
292332
$21,37 Unit Price incl. VAT
2
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
3
Rem. control switch 12V-30A
58246R
$9,32 Unit Price incl. VAT
4
Rem. control switch 12V-30A
58246R
$9,32 Unit Price incl. VAT
5
Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)
638733
$387,53 Unit Price incl. VAT
6
Spring plate
CM017409
$0,08 Unit Price incl. VAT
7
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
13
Ambient temperature sensor
581142
Not Available
14
Horn 12v cc
58092R
$26,48 Unit Price incl. VAT
15
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
16
Spring plate M5
248419
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
