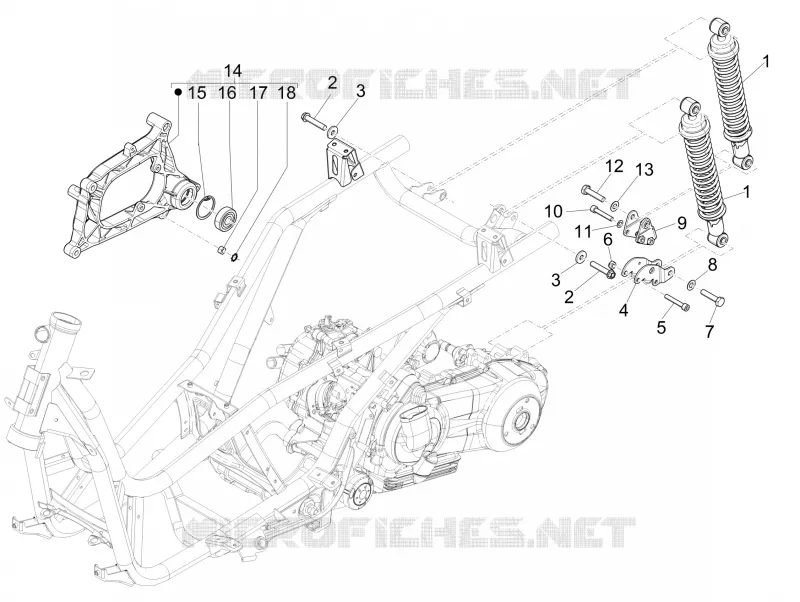

Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Rear shock absorber cpl.
56235R
Not Available
1
Rear shock absorber cpl.
646552
$141,71 Unit Price incl. VAT
2
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
LH clamp
598938
$7,01 Unit Price incl. VAT
5
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
screw
583480
$0,84 Unit Price incl. VAT
8
Washer
012535
$0,08 Unit Price incl. VAT
9
RH clamp
650159
$12,81 Unit Price incl. VAT
10
screw
018555
$3,65 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
screw
583480
$0,84 Unit Price incl. VAT
13
Washer
012535
$0,08 Unit Price incl. VAT
14
Engine suspension right bracket
871205
$116,50 Unit Price incl. VAT
14
Engine suspension right bracket
848215
$88,87 Unit Price incl. VAT
14
Engine suspension right bracket
650095
$131,72 Unit Price incl. VAT
15
Circlip
006647
$1,10 Unit Price incl. VAT
16
Ball bearing
82545R
$12,11 Unit Price incl. VAT
17
Nut M8
020008
$0,08 Unit Price incl. VAT
18
Stop ring
829377
$0,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
