by

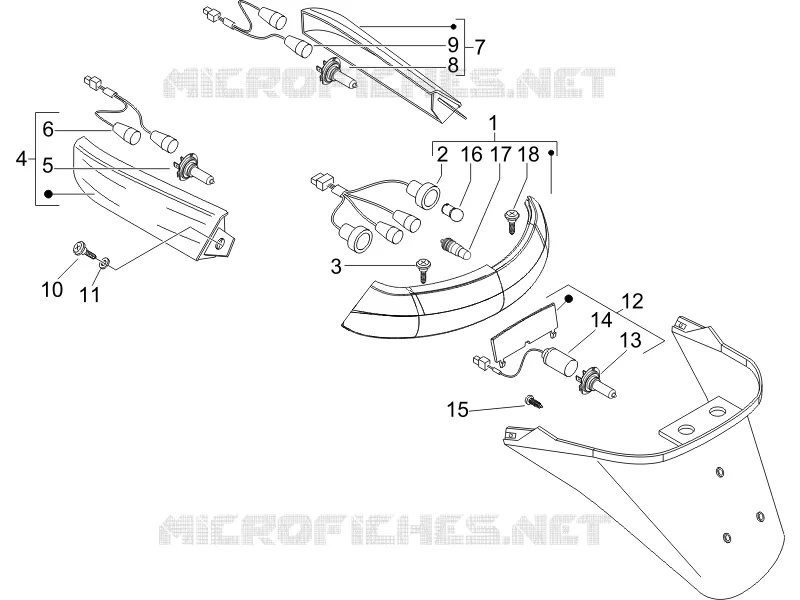

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Taillight
584210
$40,22 Unit Price incl. VAT
2
Cable harness
584982
$15,55 Unit Price incl. VAT
3
Screw M6x16
272836
$3,70 Unit Price incl. VAT
4
Rear Turn sig. lamp
584209
$22,83 Unit Price incl. VAT
5
Lamp 12V-5W
292022
Not Available
6
Cable harness
584840
$13,17 Unit Price incl. VAT
7
Rear Turn sig. lamp
584268
$22,83 Unit Price incl. VAT
8
Lamp 12V-5W
292022
Not Available
9
Cable harness
584840
$13,17 Unit Price incl. VAT
10
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
11
Plain washer 12x5.2x1
006078
$0,08 Unit Price incl. VAT
12
Rear licence plate light
640629
$17,69 Unit Price incl. VAT
13
Lamp 12V-5W
292022
Not Available
14
Cable harness
584841
$7,94 Unit Price incl. VAT
15
Plug screw
268596
$0,08 Unit Price incl. VAT
16
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
17
Lamp 12V-3W
294131
$5,07 Unit Price incl. VAT
18
Self-tap screw 3,5x13
018536
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
