Parts Catalog

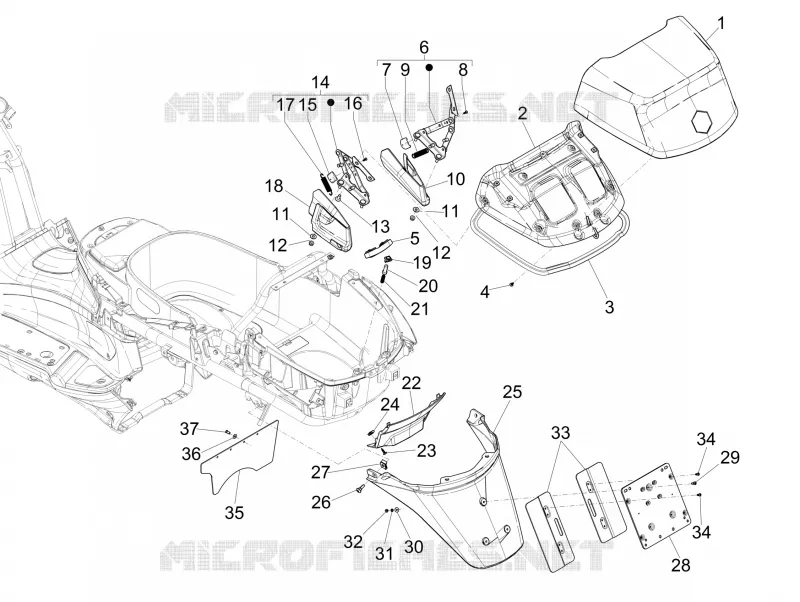

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Fork's components (Escorts)
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
1
Boot cover
62459400DF
Not Available
1
Boot cover
62459400XN2
Not Available
1
Boot cover
62459400ND
Not Available
1
Boot cover
62459400BR
Not Available
1
Boot cover
62459400EU
$76,05 Unit Price incl. VAT
1
Boot cover
62459400NI
Not Available
1
Boot cover
62459400EV
$75,94 Unit Price incl. VAT
1
Boot cover
624594
Not Available
1
Boot cover
62459400ES
$64,17 Unit Price incl. VAT
1
Boot cover
6245940090
Not Available
2
Counter flap
620758
$40,90 Unit Price incl. VAT
3
Gasket
561449
$24,14 Unit Price incl. VAT
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Gasket connection
621347
$6,15 Unit Price incl. VAT
6
Hinge with spring and left buffer
CM1774025
$35,20 Unit Price incl. VAT
7
Pad
621492
Not Available
8
Self tapping screw
297498
$0,08 Unit Price incl. VAT
9
Spring
653896
$5,38 Unit Price incl. VAT
10
Guard
CM024202
$2,41 Unit Price incl. VAT
11
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
12
Nut
219277
$0,16 Unit Price incl. VAT
13
Screw M6x16
272836
$3,70 Unit Price incl. VAT
14
Hinge with spring and left buffer
CM1774015
$35,20 Unit Price incl. VAT
15
Pad
621492
Not Available
16
Self tapping screw
297498
$0,08 Unit Price incl. VAT
17
Spring
621127
$5,38 Unit Price incl. VAT
17
Spring
653896
$5,38 Unit Price incl. VAT
18
Guard
CM024201
$2,41 Unit Price incl. VAT
19
Maintenance
621098
$1,34 Unit Price incl. VAT
20
Button
621097
$1,34 Unit Price incl. VAT
21
Spring
621099
$0,34 Unit Price incl. VAT
22
Rear lower side closing
62025300EU
$36,19 Unit Price incl. VAT
22
Rear lower side closing
62025300ND
Not Available
22
Rear lower side closing
62025300EV
$37,39 Unit Price incl. VAT
22
Rear lower side closing
62025300XN2
Not Available
22
Rear lower side closing
62025300DE
Not Available
22
Rear lower side closing
62025300BR
Not Available
22
Rear lower side closing
6202530090
$31,32 Unit Price incl. VAT
22
Rear lower side closing
62025300ES
Not Available
22
Rear lower side closing
62025300NI
Not Available
22
Rear lower side closing
620253
$5,91 Unit Price incl. VAT
22
Rear lower side closing
62025300DF
Not Available
23
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
24
Spring plate
CM017410
$0,34 Unit Price incl. VAT
25
Splash guard
620256000C
$13,25 Unit Price incl. VAT
25
Splash guard
620256000P
$12,53 Unit Price incl. VAT
26
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
27
Spring plate M6
254485
$0,34 Unit Price incl. VAT
28
Number plate holder
584884
$2,30 Unit Price incl. VAT
29
Screw M4x12
015996
$0,08 Unit Price incl. VAT
30
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
31
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
32
Nut M4
020104
$1,26 Unit Price incl. VAT
33
Number-plate extension
584877
$1,43 Unit Price incl. VAT
34
Plug screw
268596
$0,08 Unit Price incl. VAT
35
Splash guard
621329
$7,23 Unit Price incl. VAT
36
Washer 4,5x12x1
016670
$0,09 Unit Price incl. VAT
37
Rivet
252099
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
