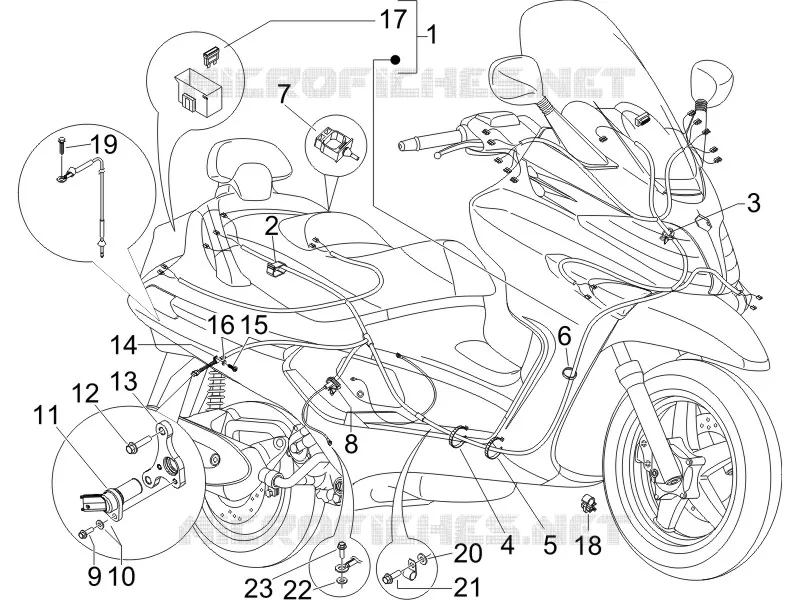

Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Cable harness
640664
Not Available
1
Cable harness
641258
$336,01 Unit Price incl. VAT
2
Hose clamp
638792
$4,82 Unit Price incl. VAT
3
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
4
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
5
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
6
Spring
CM013201
$0,40 Unit Price incl. VAT
7
Flexible support
291017
$4,88 Unit Price incl. VAT
8
Connector spring
584520
$5,38 Unit Price incl. VAT
9
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
10
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT
11
Phase/revolution sensor
832963
Not Available
12
screw
598837
$3,65 Unit Price incl. VAT
13
Bracket
639843
$6,30 Unit Price incl. VAT
14
Hose clamp
483638
$3,65 Unit Price incl. VAT
15
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
16
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
17
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
17
Fuse 30A
CM225730
$0,51 Unit Price incl. VAT
17
Fuse 15A
290860
$5,73 Unit Price incl. VAT
17
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
18
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
19
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
20
Washer
012528
$0,34 Unit Price incl. VAT
21
screw
125647
$3,68 Unit Price incl. VAT
22
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
23
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
