Flywheel magneto cover - Oil filter for X Evo Euro 3 from 2017

Flywheel magneto cover - Oil filter

1

Flywheel cover cpl.

8483785

Not Available

2

Timing plug assembly

829040

Not Available

3

O-ring

479986

Not Available

4

Water pump impeller cpl.

844730

$3,01 Unit Price incl. VAT

5

Pump impeller drive key

842389

$5,64 Unit Price incl. VAT

6

Gasket ring 20x30x5

82897R

$4,36 Unit Price incl. VAT

6

Gasket ring

82871R

Not Available

7

Gasket ring

842595

Not Available

8

Water pump shaft assy.

8447595

$54,95 Unit Price incl. VAT

9

Washer

012528

$0,34 Unit Price incl. VAT

10

O-ring 31,47x1,78

285536

$0,92 Unit Price incl. VAT

11

Oil filter plug

82823R

Not Available

11

Oil filter plug

826165

$5,88 Unit Price incl. VAT

12

Washer 10.5X16X2.5

486075

$1,58 Unit Price incl. VAT

13

Oil pressure sensor

82580R

$16,59 Unit Price incl. VAT

14

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

15

Oil filter

82635R

$12,36 Unit Price incl. VAT

16

Oil filter special screw

840507

$10,25 Unit Price incl. VAT

17

screw M6x35

414838

$0,67 Unit Price incl. VAT

18

Flywheel housing cover gasket

840504

$2,91 Unit Price incl. VAT

19

screw

844160

Not Available

20

Plate

848109

$3,65 Unit Price incl. VAT

21

Intake oil filter

843568

$14,92 Unit Price incl. VAT

22

O-ring 20,35x1,78

288474

$0,08 Unit Price incl. VAT

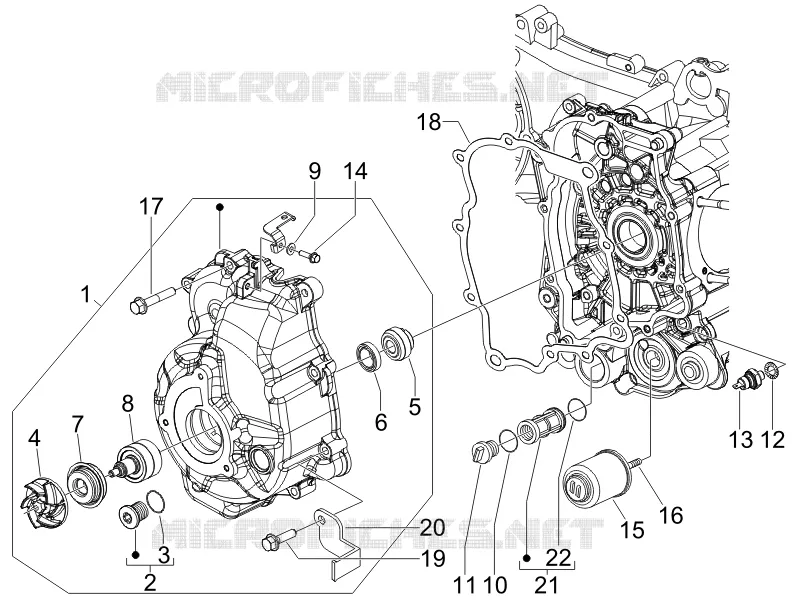

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
