1
Engine displacement
150
2
Model
FLY
3
Year
2006
4
Trim
Fly 4T
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Main cable harness
by
Locks

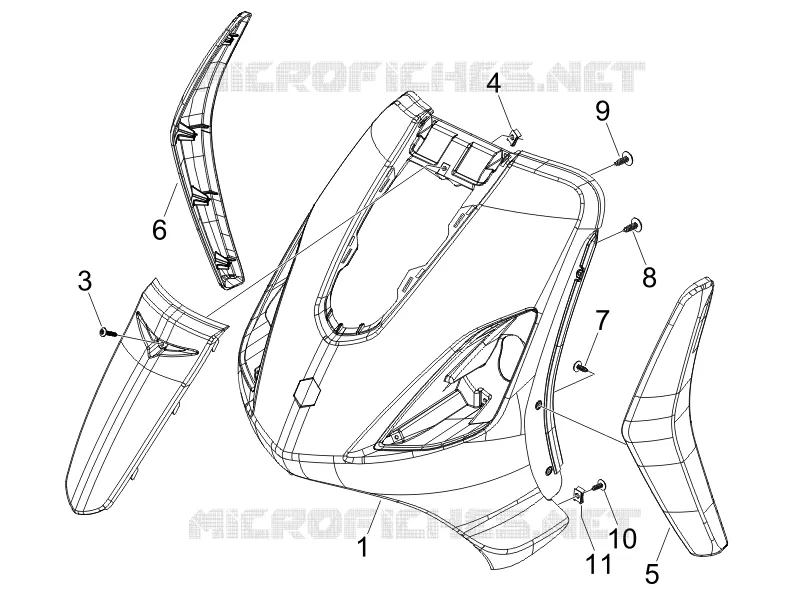

Front shield
1
3
4
5
6
8
9
10
11
1
Front shield, red
62198000R7
$469,70 Unit Price incl. VAT
1
Front shield
6219804087
Not Available
1
SHIELD
6219804018
Not Available
1
SHIELD
62198040BG
Not Available
1
FF SHIELD
62198040R7
Not Available
1
FF SHIELD 94
6219804090
Not Available
1
Front shield
62198040F2
Not Available
1
FF SHIELD
62198040DB
Not Available
1
FF SHIELD
6219800018
Not Available
1
Front shield nero
6219800090
$469,70 Unit Price incl. VAT
1
FF SHIELD
62198000AF
Not Available
1
Front shield bianco
6219800087
$469,70 Unit Price incl. VAT
1
shield
62198000DB
Not Available
1
Front shield grigio
62198000F2
$469,70 Unit Price incl. VAT
1
Front shield
621980
$375,63 Unit Price incl. VAT
3
screw
622840
$2,25 Unit Price incl. VAT
4
Spring plate
CM017410
$0,34 Unit Price incl. VAT
5
Deflector l.h. grigio
6219920043
$7,23 Unit Price incl. VAT
6
Deflector r.h. grigio
6219930043
$7,23 Unit Price incl. VAT
8
Screw M6x16
272836
$3,70 Unit Price incl. VAT
9
Self tapping screw
297498
$0,08 Unit Price incl. VAT
10
Self-tap screw
576189
$0,05 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
STEERING COVER
62198340BG
Not Available
12
Steering column cover
62198300F2
Not Available
12
STEERING COVER
62198300BG
Not Available
12
STEERING COVER
6219830018
Not Available
12
Steering column cover
6219830087
$57,79 Unit Price incl. VAT
12
STEERING COVER
62198340EI
Not Available
12
STEERING COVER
62198300AF
Not Available
12
STEERING COVER
6219834018
Not Available
12
Cover
62198300DB
$57,79 Unit Price incl. VAT
12
Steering column cover
6219830090
$57,79 Unit Price incl. VAT
12
STEERING COVER
62198300EI
Not Available
12
STEERING COVER
62198340R7
Not Available
12
STEERING COVER
62198340AF
Not Available
12
Steering column cover
621983
$46,26 Unit Price incl. VAT
12
STEERING COVER
6219834087
Not Available
12
STEERING COVER
62198340F2
Not Available
12
STEERING COVER
62198340DB
Not Available
12
STEERING COVER 94
6219834090
Not Available
12
Cover
62198300R7
$57,79 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
