1
Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution ABS
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
9
10
11
12
14
15
16
17
18
20
21
22
23
24
25
26
27
30
31
32
33
34
35
38
39
40
41
42
43
1
Voltage regulator
58086R
Not Available
2
VITE ESAG.FLANGIATA M6X
828863
$0,09 Unit Price incl. VAT
3
CENTRAL.CONTR.CAVALLET
582098
$74,95 Unit Price incl. VAT
4
Bracket
582141
Not Available
4
Relay bracket
CM022801
Not Available
5
Spacer
217164
$0,62 Unit Price incl. VAT
9
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
10
RONDELLA ELASTICA 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
11
TAMPONE
217163
$0,54 Unit Price incl. VAT
12
ELECTRONIC INJECTION DEVICE
CM078403
Not Available
14
Plate
583385
Not Available
15
SEGNALATORE RELE' INCO
583363
$24,44 Unit Price incl. VAT
16
CAVO BASE A.T.
080341
$5,89 Unit Price incl. VAT
17
CAPPUCCIO SCHERMATO
293845
$6,14 Unit Price incl. VAT
18
COLLARE PROTEZIONE CANDELA
436919
$1,45 Unit Price incl. VAT
20
GRUPPO BOBINA A.T.
58120R
$65,76 Unit Price incl. VAT
20
HT coil
584648
Not Available
21
Bracket for HT coil
639880
$8,91 Unit Price incl. VAT
21
SUPPORTO BOBINA AT
584646
$22,29 Unit Price incl. VAT
22
CAPPUCCIO
071671
$1,29 Unit Price incl. VAT
23
DADO M3 - 6H
020003
$2,27 Unit Price incl. VAT
24
VITE AT.C.CALOTTA E TAGLIO
583236
$3,70 Unit Price incl. VAT
25
RONDELLA 3,2X5,7X0,9
012554
$1,56 Unit Price incl. VAT
26
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
27
Electronic control unit
638635
Not Available
30
RADIOCOMANDO ANTIFURTO
584635
$29,51 Unit Price incl. VAT
31
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
32
PIASTRINA ELASTICA
248419
$0,67 Unit Price incl. VAT
33
VITE A TESTA CILINDRICA M5X21
015856
$0,16 Unit Price incl. VAT
34
RONDELLA ELASTICA 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
35
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
38
Electro-actuator control unit
638591
Not Available
39
TAMPONE
217163
$0,54 Unit Price incl. VAT
40
Spacer
217164
$0,62 Unit Price incl. VAT
41
Bracket
638887
Not Available
42
VITE T.B.I.C. M5 X25
015597
$0,08 Unit Price incl. VAT
43
Device
638873
Not Available

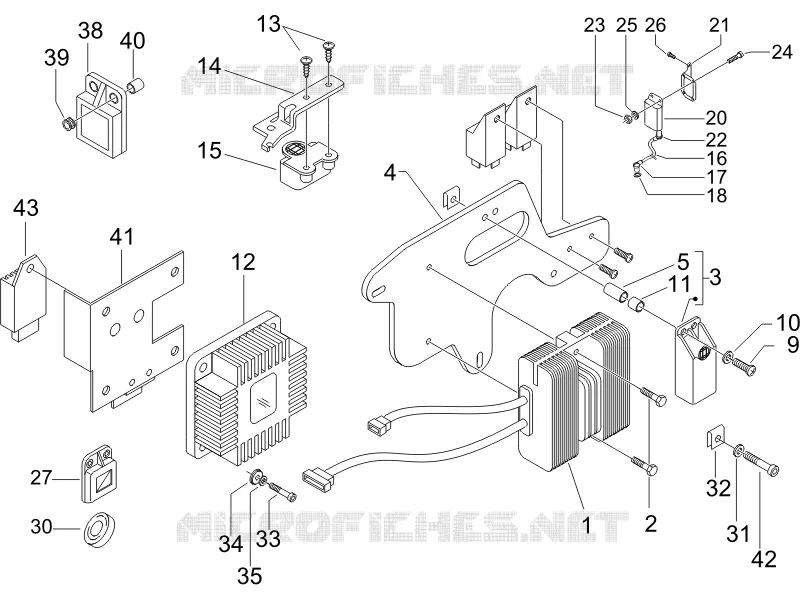

Find the detailed Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
