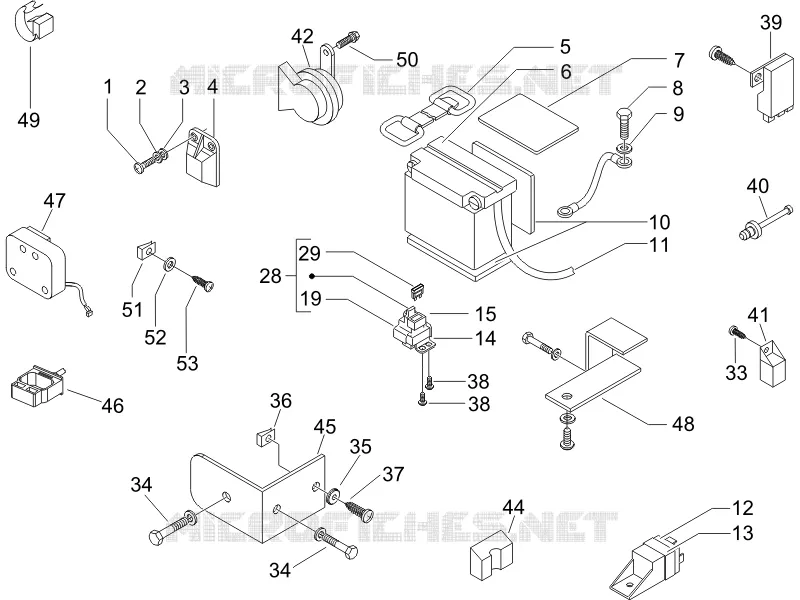

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
19
28
29
33
34
34
35
36
37
38
38
39
40
41
42
44
45
46
47
48
49
50
51
52
53
1
Screw M6x20
015759
$2,95 Unit Price incl. VAT
2
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
3
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
4
Decoder
829121
Not Available
5
Belt
583921
$9,50 Unit Price incl. VAT
6
Yuasa battery YTX16-BS
639860
$408,86 Unit Price incl. VAT
6
Battery 12V-14Ah
584033
$185,07 Unit Price incl. VAT
7
Battery cover
577586
Not Available
8
screw
581596
$0,07 Unit Price incl. VAT
9
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
10
Pad
577313
$5,53 Unit Price incl. VAT
11
Breather pipe
580977
Not Available
12
Diode gr.
583529
Not Available
13
Gasket
583283
$4,82 Unit Price incl. VAT
14
Bracket
582827
Not Available
15
Electromagnetic switch support bracket
581859
$2,10 Unit Price incl. VAT
19
Flexible support
582906
Not Available
28
Starter relay
582690
$27,87 Unit Price incl. VAT
29
Fuse 30A
581440
Not Available
33
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
34
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
35
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
36
Spring plate M6
254485
$0,34 Unit Price incl. VAT
37
Screw M6x16
272836
$3,70 Unit Price incl. VAT
38
Screw d3,5x9,5
008432
$3,65 Unit Price incl. VAT
39
Rem. control switch 12V-30A
581139
Not Available
40
Ambient temperature sensor
581142
Not Available
41
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
42
Warning horn 12V
581441
$46,92 Unit Price incl. VAT
44
Pad
583310
$1,60 Unit Price incl. VAT
45
Bracket
583531
Not Available
46
Flexible support
291017
$4,88 Unit Price incl. VAT
47
Fall sensor
584509
$26,13 Unit Price incl. VAT
48
BRACKET
584519
Not Available
49
Connector spring
584520
$5,38 Unit Price incl. VAT
50
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
51
Spring plate
CM017405
$3,65 Unit Price incl. VAT
52
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
53
screw
015728
$2,95 Unit Price incl. VAT
54
Screw M5x10
018575
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
