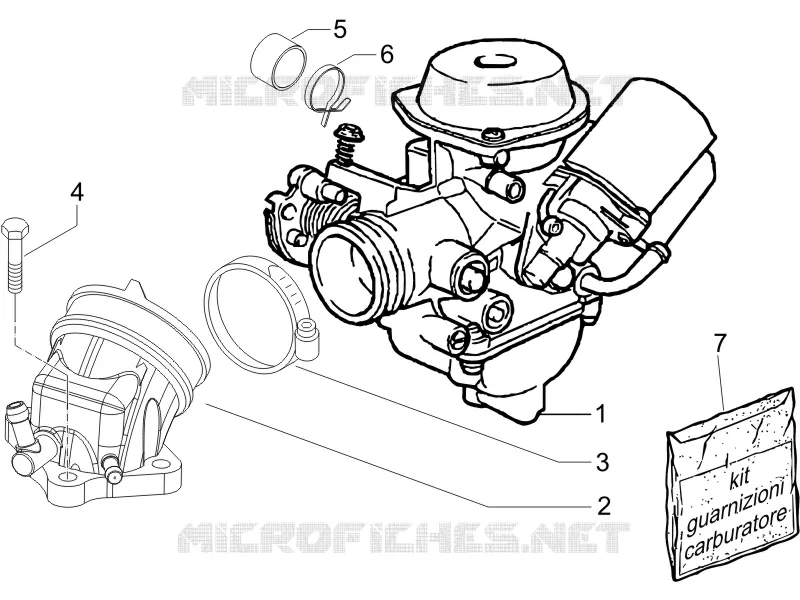

Carburettor, assembly - Union pipe
1
2
3
4
5
6
7
1
Carburettor
CM128205
Not Available
2
Union pipe
840949
Not Available
3
Hose clamp
709532
Not Available
4
screw M6x22
828152
$0,15 Unit Price incl. VAT
5
Air intake
841695
$7,69 Unit Price incl. VAT
6
Hose clamp
CM002916
$3,65 Unit Price incl. VAT
7
Carburettor gasket set Per carburatore WALBRO
494921
Not Available
8
Hose clamp
260918
$1,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
