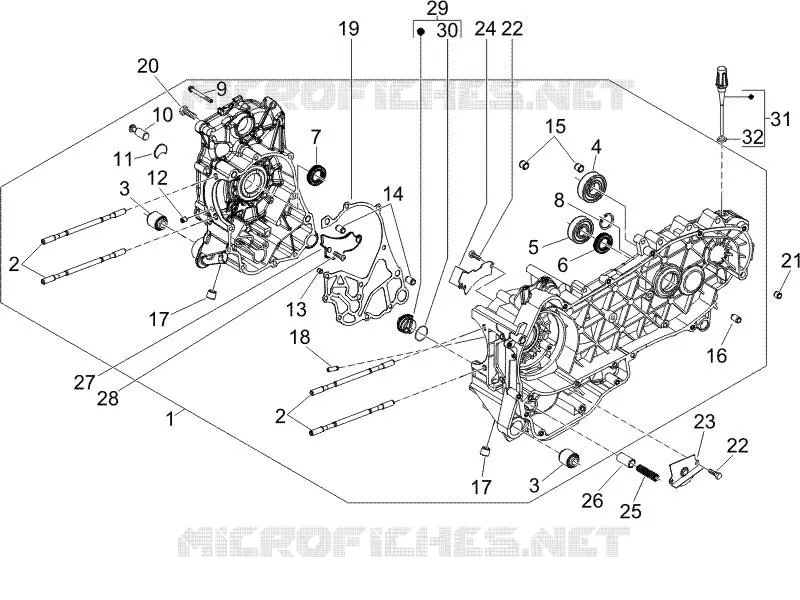

Crankcase for X8 ie Euro 3 from 2008

Crankcase

1

Complete crankcase Cat.2

CM1280085002

Not Available

1

Complete crankcase Cat.1

CM1280085001

Not Available

2

Stud bolt

829375

Not Available

3

Silent-block

486081

$6,73 Unit Price incl. VAT

4

Radial ball bearing 15x42x13

485912

Not Available

5

Radial bearing 20x47x14

485913

Not Available

6

Gasket ring

82539R

Not Available

6

Gasket ring 20-32-7

82878R

$10,25 Unit Price incl. VAT

7

Gasket ring 20-30-7

82898R

$4,36 Unit Price incl. VAT

7

Gasket ring

82540R

Not Available

8

Circlip 25x26.9x1.2

000674

Not Available

9

screw M6x60

432142

$0,19 Unit Price incl. VAT

10

Springs fixing pin

483785

$5,45 Unit Price incl. VAT

11

Cup

840489

$0,33 Unit Price incl. VAT

12

Nozzle D 1.1

844582

$0,05 Unit Price incl. VAT

13

Locating dowel

484993

$0,16 Unit Price incl. VAT

14

Pin 6,5x9,5x15

239388

Not Available

15

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

16

Bush Ã˜8xÃ˜12x8

431860

$3,70 Unit Price incl. VAT

17

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

18

Nozzle

484034

$6,44 Unit Price incl. VAT

19

Half crankcase gasket

845212

Not Available

20

screw M6x60

432142

$0,19 Unit Price incl. VAT

21

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

22

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

23

Lower oil bulkhead

483767

$0,38 Unit Price incl. VAT

24

Upper oil bulkhead

485047

$0,48 Unit Price incl. VAT

25

Spring

485655

$1,26 Unit Price incl. VAT

26

Oil pressure valve

829661

$6,44 Unit Price incl. VAT

27

Plate

828766

$0,24 Unit Price incl. VAT

28

Screw M5x10

018575

$2,95 Unit Price incl. VAT

29

Filter door insert

845861

$3,82 Unit Price incl. VAT

30

Gasket

431065

$0,42 Unit Price incl. VAT

31

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

32

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
