Locks for GILERA PIAGGIO VESPA X8 ie Euro 3 from 2008

Locks

1

CILINDRETTO E CHIAVI PER SERRATURA

576552

$48,63 Unit Price incl. VAT

2

SBOZZATO

575810

$55,57 Unit Price incl. VAT

3

ANELLO DI TENUTA

298731

$0,25 Unit Price incl. VAT

4

BLOCCHETTO SERRAT.COMP

577816

$20,60 Unit Price incl. VAT

5

MOLLA RITEGNO CILINDRETTO

298838

$0,51 Unit Price incl. VAT

6

RONDELLA

298594

$1,01 Unit Price incl. VAT

7

Lock body

298581

Not Available

8

Immobilizer antenna

828800

Not Available

9

MOLLETTA

253937

$0,25 Unit Price incl. VAT

10

LEVETTA PER SERRATURA

575863

$5,38 Unit Price incl. VAT

11

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

12

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

13

STAFFA SUPPORTO ATTUATORE

577194

$8,16 Unit Price incl. VAT

14

Solenoid valve

582990

Not Available

15

VITE A TESTA ESAGONALE

584121

$0,34 Unit Price incl. VAT

16

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

17

GIUNTO

577128

$1,01 Unit Price incl. VAT

18

MOLLA

620415

$4,82 Unit Price incl. VAT

19

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

20

LEVA DI RINVIO

577129

$1,43 Unit Price incl. VAT

21

MOLLA

577131

$4,82 Unit Price incl. VAT

22

SERRATURA SELLA/PORTELLO

CM023704

$24,03 Unit Price incl. VAT

23

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

24

RONDELLA ELASTICA D16 F6,2

078307

$0,17 Unit Price incl. VAT

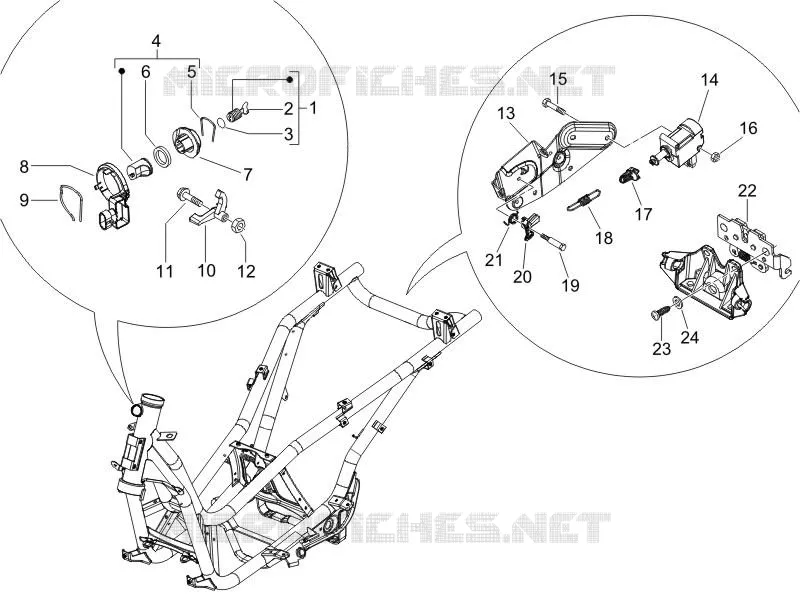

Find the detailed Locks GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
