1
Engine displacement
400
2
Model
X9
3
Year
2008
4
Trim
X8 ie Euro 3
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Plates - Emblems
Rear cover - Splash guard
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
CHIUSURA FIANC.INF.
57556800E8
$44,42 Unit Price incl. VAT
2
VITE
258249
$0,09 Unit Price incl. VAT
3
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
4
Rear splash guard
57609800E8
Not Available
5
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
6
PORTATARGA
584884
$2,30 Unit Price incl. VAT
7
screw M4x14
018591
Not Available
8
DADO M4 - 6H
020104
$1,26 Unit Price incl. VAT
9
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
10
RONDELLA ELASTICA
016404
$0,42 Unit Price incl. VAT
11
PROLUNGA PER PORTATARGA
584877
$1,43 Unit Price incl. VAT
12
VITE AUTOFILETTANTE PER MATERIE PLAST.
268596
$0,08 Unit Price incl. VAT
13
Covers
62043200EB
$179,38 Unit Price incl. VAT
13
RR CLOSING COVER X9 UNPAINTED
62043200ND
$177,52 Unit Price incl. VAT
13
COPERCHIO FIANCATA POST.
62043200F2
$179,38 Unit Price incl. VAT
13
Rear tail lamp section
62043200DE
$179,38 Unit Price incl. VAT
13
RR CLOSING COVER X9 PAINTED
62043200ES
Not Available
13
COPERCHIO FIANCATA POST.
620432
$143,87 Unit Price incl. VAT
14
VITE
018640
$0,16 Unit Price incl. VAT
15
RONDELLA PIANA 18x6,2x2
013950
$0,34 Unit Price incl. VAT
16
Splash guard
576754
Not Available
17
RONDELLA PIANA 12x4,5x1
016670
$0,09 Unit Price incl. VAT
18
RIVETTO
252099
$3,65 Unit Price incl. VAT

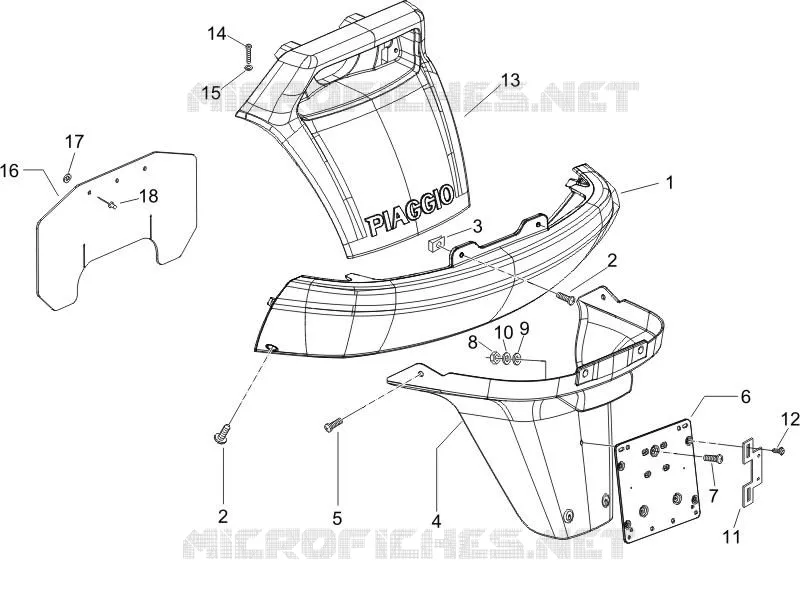

Find the detailed Rear cover - Splash guard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
