1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie (Euro 3)
5
Parts Catalog

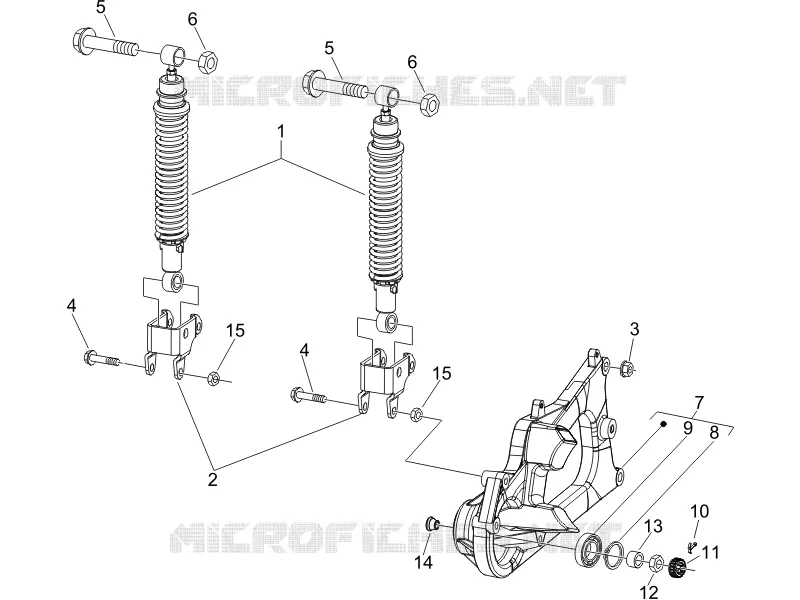

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Driving pulley
by
Driving mirror/s
Rear suspension - Shock absorber/s
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
15
1
Rear shock absorber cpl.
647110
Not Available
2
Rear shock absorber fixing bracket
646838
$18,75 Unit Price incl. VAT
3
Nut M10x1,25 6H
833520
$0,42 Unit Price incl. VAT
4
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
5
Screw w/ flange
598838
$1,46 Unit Price incl. VAT
6
Self locking nut M10
232108
Not Available
6
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
7
Exaust pipe support
847254
Not Available
8
Circlip
006647
$1,10 Unit Price incl. VAT
9
Ball bearing
82545R
$12,11 Unit Price incl. VAT
10
Split pin
012789
$0,16 Unit Price incl. VAT
11
Nut hold cap
194423
$0,48 Unit Price incl. VAT
12
Nut M16x13
563728
$1,42 Unit Price incl. VAT
13
Spacer
597528
$1,51 Unit Price incl. VAT
14
Wheel spacer
848039
$18,12 Unit Price incl. VAT
15
Nut M8
020008
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
