1
Engine displacement
400
2
Model
X8
3
Year
2006
4
Trim
X8 ie (Euro 3)
5
Parts Catalog
Remote control switches - Battery - Horn
6

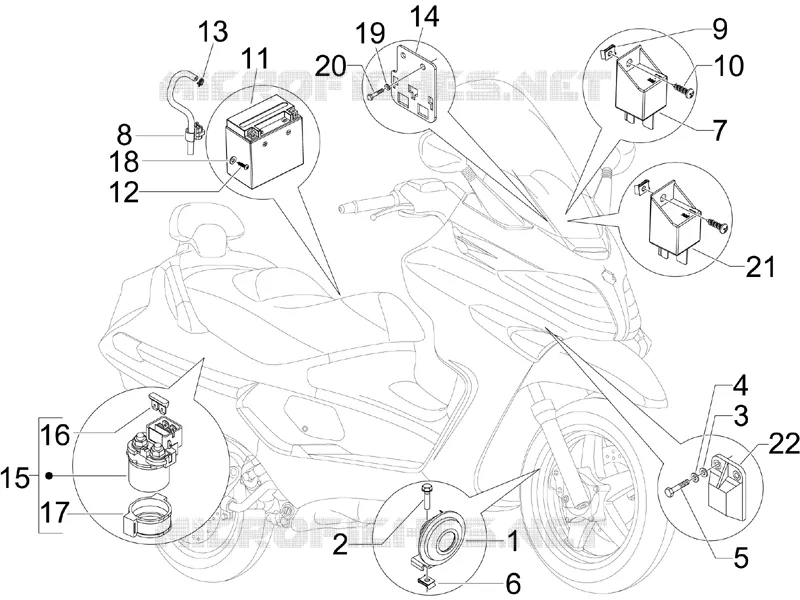

Parts Diagram
Parts Catalog
Front shield
by
Stand/s
Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Horn 12v cc
58092R
$26,48 Unit Price incl. VAT
2
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
3
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
4
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
5
Screw M6x20
015759
$2,95 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Rem. control switch 12V-30A
58099R
$36,86 Unit Price incl. VAT
8
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
9
Spring plate M5
248419
$0,67 Unit Price incl. VAT
10
TBCIC Screw M5x12
015935
$4,82 Unit Price incl. VAT
11
Battery Yuasa 12V-12Ah (133x85x145)
584867
$203,30 Unit Price incl. VAT
11
Battery Yuasa YTX14-BS 12V-12Ah (150x87x145)
638733
$387,53 Unit Price incl. VAT
12
screw
581596
$0,07 Unit Price incl. VAT
13
Hose clamp
639082
$3,65 Unit Price incl. VAT
14
Bracket
583525
Not Available
14
Relay bracket
CM022801
Not Available
15
Starter relay
582690
$27,87 Unit Price incl. VAT
16
Fuse 30A
581440
Not Available
17
Flexible support
582906
Not Available
18
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
19
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
20
Screw m6x12
031086
$0,08 Unit Price incl. VAT
21
Rem. control switch 12v-30a
583684
Not Available
22
Decoder
829121
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
