1
Engine displacement
250
2
Model
X8
3
Year
2005
4
Trim
X8 ie
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Brakes pipes - Calipers

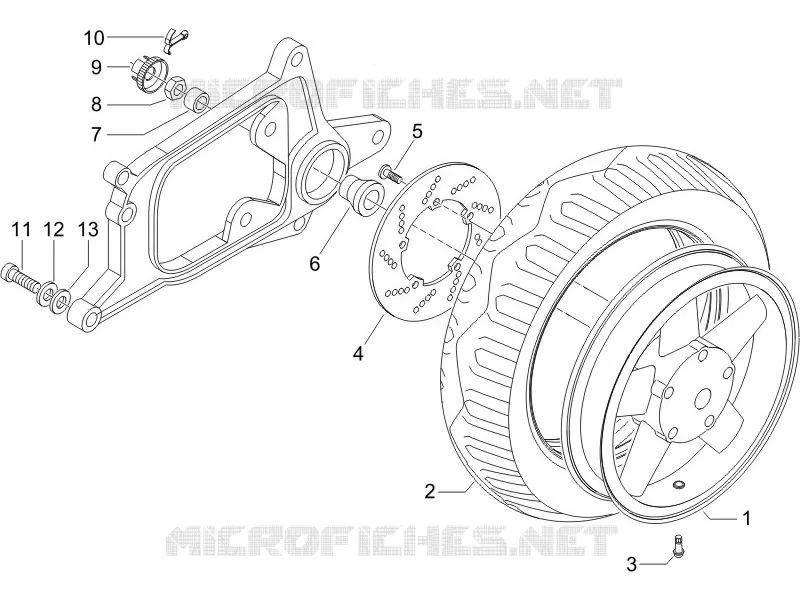

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Rear wheel
598892
Not Available
2
Tire (Pirelli) 130/70-12"
597945
Not Available
2
Tyre
599833
Not Available
3
Tubeless valve
597679
$3,03 Unit Price incl. VAT
4
Brake disc
597520
Not Available
5
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
6
Wheel spacer
848039
$18,12 Unit Price incl. VAT
7
Spacer
597528
$1,51 Unit Price incl. VAT
8
Nut M16x13
563728
$1,42 Unit Price incl. VAT
9
Nut hold cap
194423
$0,48 Unit Price incl. VAT
10
Split pin
012789
$0,16 Unit Price incl. VAT
11
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
12
Spring washer
709047
$0,08 Unit Price incl. VAT
13
Washer
013776
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
