Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Locks
by
Cooling system
Fuel tank
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
17
18
19
1
Fuel tank
623534
$122,96 Unit Price incl. VAT
2
Screw w/ flange M6x30
289731
Not Available
3
Spacer
231027
$1,22 Unit Price incl. VAT
4
Flat washer 6,5x21
268304
$0,42 Unit Price incl. VAT
5
Self locking nut
012138
$0,17 Unit Price incl. VAT
6
Plug
259832
$1,10 Unit Price incl. VAT
7
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
8
Indicator fuel level
CM025707
$86,99 Unit Price incl. VAT
9
Complete fuel pump assembly
639150
Not Available
10
Fuel pump filter
639357
$78,73 Unit Price incl. VAT
11
Fuel feed pipe
623782
$104,82 Unit Price incl. VAT
12
Fuel return pipe
623784
$84,54 Unit Price incl. VAT
13
Hose clamp
623743
Not Available
14
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
15
Molletta
CM006910
$0,25 Unit Price incl. VAT
17
Fuel glass cup
622240
$3,56 Unit Price incl. VAT
18
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
18
Tank breather pipe
CM011904
$20,60 Unit Price incl. VAT
19
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
19
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
21
Gasket
576542
Not Available
22
Ring nut
576546
$4,71 Unit Price incl. VAT

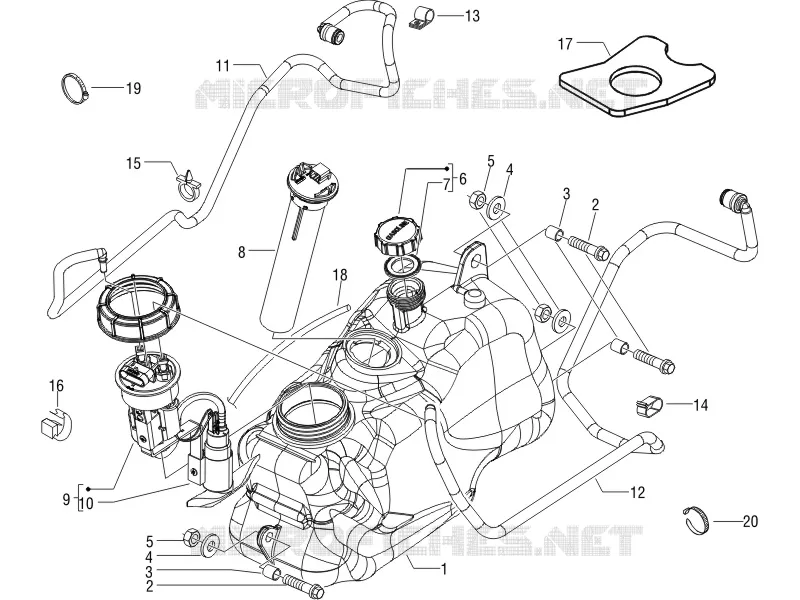

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
