by

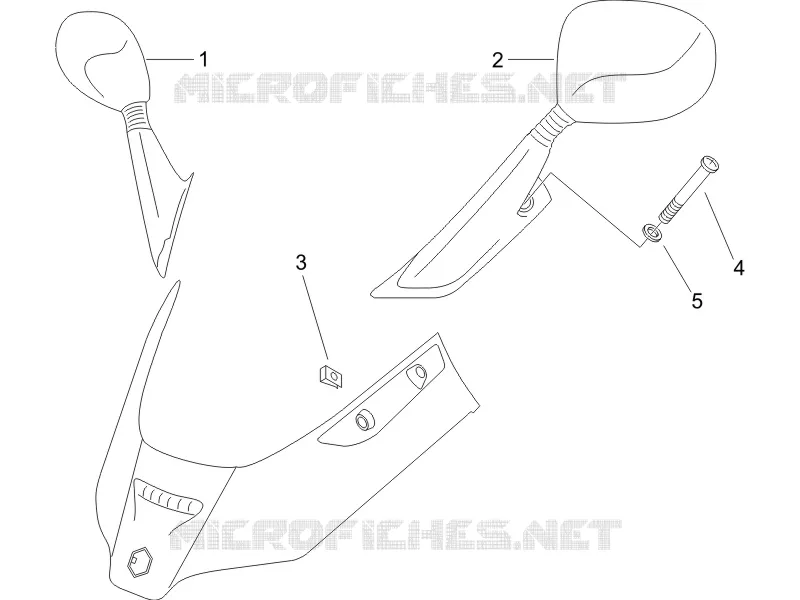

Driving mirror/s
1
2
3
4
5
1
Mirror
CM073901
Not Available
1
RH MIRROR
CM174801
Not Available
2
Mirror
CM073902
Not Available
2
LH MIRROR
CM174802
Not Available
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Hexagon convex big end screw
620366
$0,27 Unit Price incl. VAT
5
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
