Engine displacement
350
2
Model
BV
3
Year
2013
4
Trim
BV 4T 4V ie E3
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Cylinder-piston-wrist pin unit
Rear suspension - Shock absorber/s
1
1
2
2
3
4
5
6
7
7
8
9
10
10
11
12
13
14
15
15
16
16
1
Complete rear shock absorber
58583R
$116,10 Unit Price incl. VAT
1
Complete rear shock absorber
58613R
$213,02 Unit Price incl. VAT
2
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
3
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
4
Sil.block
880343
$11,77 Unit Price incl. VAT
5
Shock absorber connection bracket
666678
$97,76 Unit Price incl. VAT
6
Sil.block
880343
$11,77 Unit Price incl. VAT
7
Hex screw M10x45
015578
$2,99 Unit Price incl. VAT
8
Washer
709646
Not Available
9
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
10
Washer
013776
$0,34 Unit Price incl. VAT
11
Spring washer
709047
$0,08 Unit Price incl. VAT
12
Right suspension arm
880389
$347,21 Unit Price incl. VAT
13
Circlip
006647
$1,10 Unit Price incl. VAT
14
Ball bearing
82545R
$12,11 Unit Price incl. VAT
15
Hex socket screw
845590
$0,92 Unit Price incl. VAT
16
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT

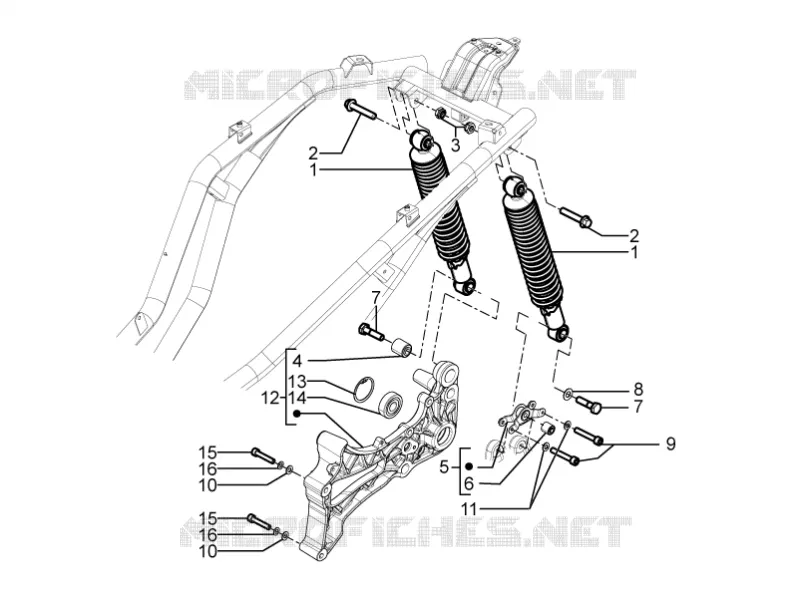

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
