1
Engine displacement
250
2
Model
X8
3
Year
2006
4
Trim
X8 ie
5
Parts Catalog

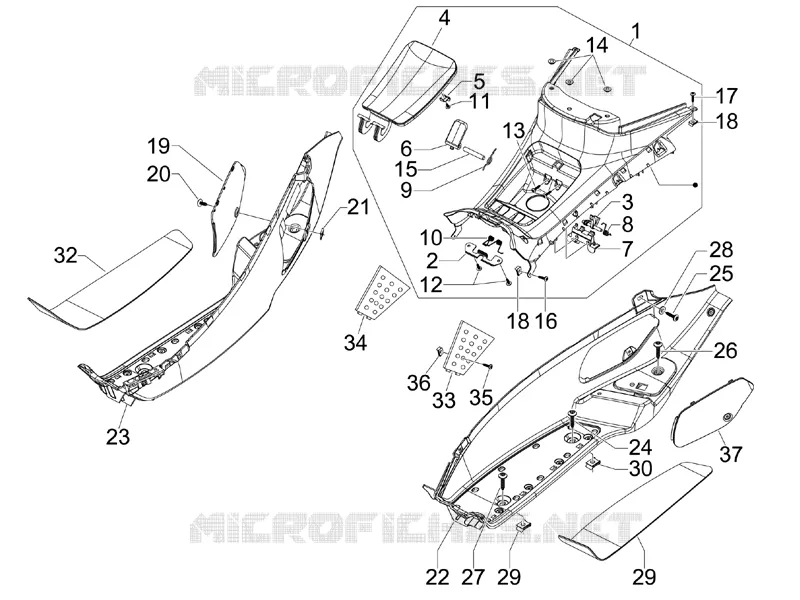

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Side cover - Spoiler
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
29
30
32
33
34
35
36
37
1
CENTRAL COVER
62090800DE
Not Available
1
Complete central cover
6209080087
Not Available
1
CENTRAL COVER
62090800EB
Not Available
1
CENTRAL COVER
62090800EI
Not Available
1
CENTRAL COVER
62090800F3
Not Available
1
Complete central cover
62090800ND
Not Available
1
Complete central cover
62090800F2
Not Available
2
Flap retainer plate
624465
$6,30 Unit Price incl. VAT
2
Flap retainer plate
620293
$5,38 Unit Price incl. VAT
3
Cam lever
576626
$1,51 Unit Price incl. VAT
4
Fuel flap
620250
Not Available
4
Fuel flap
620250000P
$11,77 Unit Price incl. VAT
5
Square
299689
Not Available
6
Lever
577861
$1,35 Unit Price incl. VAT
7
Maintenance
620491
$1,43 Unit Price incl. VAT
8
Spring
575604
$0,92 Unit Price incl. VAT
9
Spring
577399
$2,61 Unit Price incl. VAT
10
Spring
621507
$2,77 Unit Price incl. VAT
11
Self tapping screw
297498
$0,08 Unit Price incl. VAT
12
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
13
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
14
Knurled bushing
830056
$0,34 Unit Price incl. VAT
15
Pin
577400
$5,38 Unit Price incl. VAT
16
Self-tap screw
576189
$0,05 Unit Price incl. VAT
17
screw
008265
$2,25 Unit Price incl. VAT
18
Spring plate
CM017410
$0,34 Unit Price incl. VAT
19
Right spark plug inspection cover
620273000P
$9,80 Unit Price incl. VAT
19
Flap
62027300E8
Not Available
20
Self-tap screw
576189
$0,05 Unit Price incl. VAT
21
Spring plate
CM017410
$0,34 Unit Price incl. VAT
22
LH FOOT REST
62359200E8
$10,45 Unit Price incl. VAT
22
LH footrest
623592000P
$13,14 Unit Price incl. VAT
23
RH footrest
624017000P
$13,14 Unit Price incl. VAT
24
Screw m6x30
271891
$3,65 Unit Price incl. VAT
25
Screw M6x16
272836
$3,70 Unit Price incl. VAT
26
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
27
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
28
Washer
297029
$3,70 Unit Price incl. VAT
29
Spring plate
CM017410
$0,34 Unit Price incl. VAT
30
Spring plate M6
254485
$0,34 Unit Price incl. VAT
31
Mat
CM018801
$13,08 Unit Price incl. VAT
32
Mat
CM018802
Not Available
33
Left lateral cover
CM024401
$9,90 Unit Price incl. VAT
34
RH side cover
CM024402
$9,90 Unit Price incl. VAT
35
Screw d3,5x13
008372
$2,95 Unit Price incl. VAT
36
Plate
CM017404
$3,65 Unit Price incl. VAT
37
Left spark plug inspection cover
623654000P
$4,16 Unit Price incl. VAT
37
flap
62365400E8
$4,11 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
