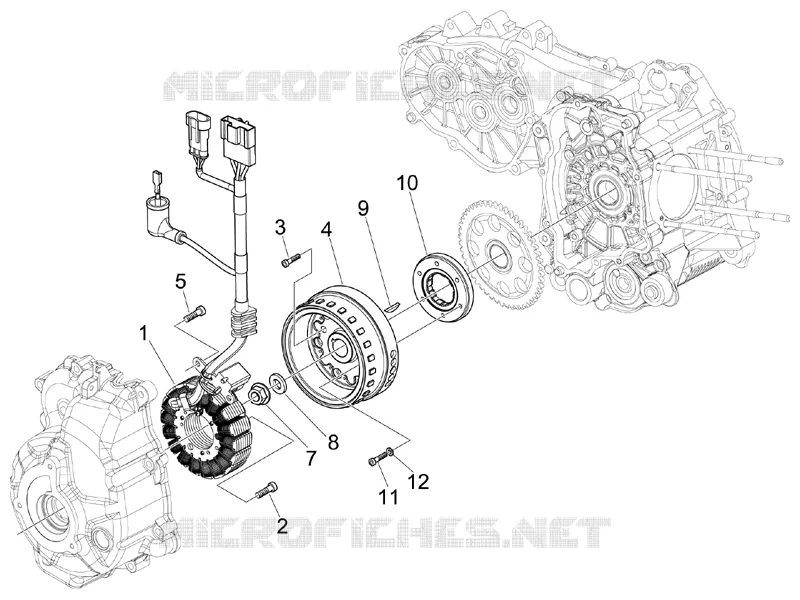

Flywheel magneto
1
1
2
3
4
5
7
8
9
10
11
12
1
STATOR ASSY
58112R
Not Available
2
Vite testa cilindro esagonale
486175
Not Available
3
Screw M5x10
018575
$2,95 Unit Price incl. VAT
4
Rotor cpl.
58071R
Not Available
5
Screw M5x10
018575
$2,95 Unit Price incl. VAT
7
Nut
842388
Not Available
8
Plain washer
842385
$0,68 Unit Price incl. VAT
9
Transmission key
000097
$5,21 Unit Price incl. VAT
10
Complete freewheel
8477975
$71,50 Unit Price incl. VAT
11
Hex socket screw M6x25
840893
$0,41 Unit Price incl. VAT
11
Hex socket screw M6x24
847679
Not Available
12
Break washer
479515
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
