1
Engine displacement
200
2
Model
X8
3
Year
2006
4
Trim
X8
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Rear suspension - Shock absorber/s
Front wheel
1
2
3
4
5
6
7
8
9
9
11
12
13
14
15
1
Front wheel complete
597519T
Not Available
1
FRONT WHEEL
56374R
$453,60 Unit Price incl. VAT
2
Nut M12
271740
$0,67 Unit Price incl. VAT
3
Bearing
327187
$11,03 Unit Price incl. VAT
4
Front wheel axle
564446
$24,90 Unit Price incl. VAT
5
Spacer
564447
$9,41 Unit Price incl. VAT
6
Short spacer
564448
$8,01 Unit Price incl. VAT
7
RH spacer
564489
$3,65 Unit Price incl. VAT
8
Bearing
564491
$9,18 Unit Price incl. VAT
9
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
9
screw
601031
Not Available
11
Tyre 120/70-14" Pirelli
564980
Not Available
11
Tyre 120/70-14"
564365
Not Available
12
Spedometer socket
CM071701
Not Available
13
Tubeless valve
597679
$3,03 Unit Price incl. VAT
14
Brake disc
56393R
$52,65 Unit Price incl. VAT
14
Brake disc
599315
Not Available
15
Front wheel hub cover
599423
$2,68 Unit Price incl. VAT

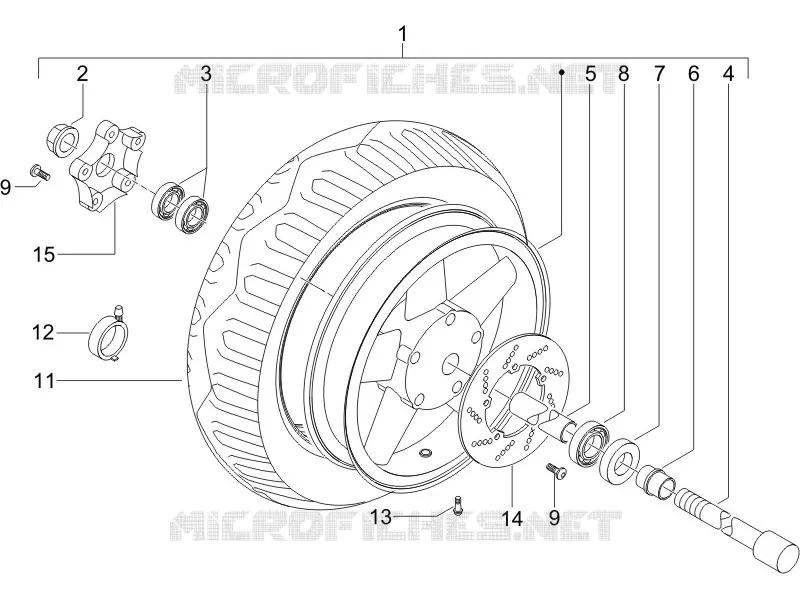

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
