1
Engine displacement
125
2
Model
X8
3
Year
2006
4
Trim
X8 Street Euro 2
5
Parts Catalog

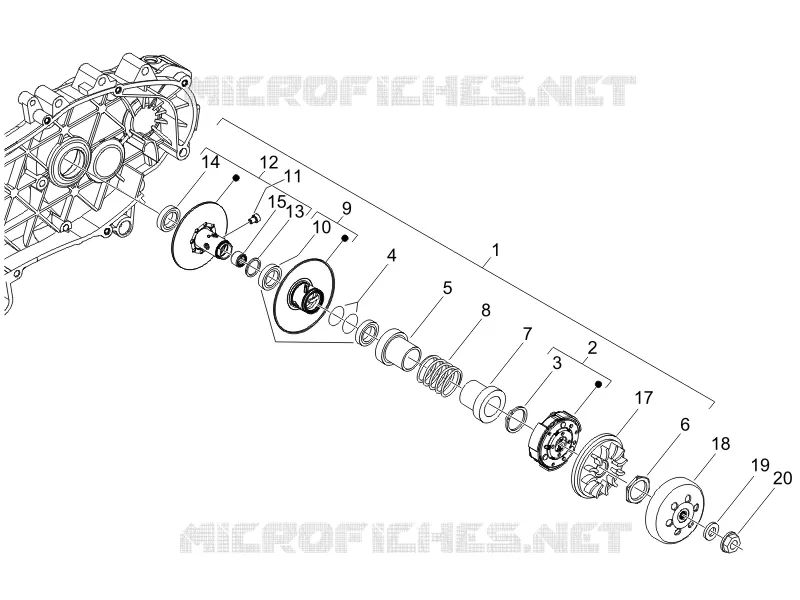

Driven pulley
6
Parts Diagram
Parts Catalog
Air filter
by
Fuel tank
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
19
20
1
Complete secondary pulley
82742R
Not Available
2
Complete centrifugal clutch assembly
CM144002
Not Available
3
Gasket ring
006410
$2,74 Unit Price incl. VAT
4
Gasket
430585
$4,89 Unit Price incl. VAT
5
Cup
431093
Not Available
6
Ring nut
433232
$2,31 Unit Price incl. VAT
7
Clutch side cap
487936
$5,73 Unit Price incl. VAT
8
Variator spring
825726
$5,64 Unit Price incl. VAT
9
Sec.sliding sheave
827595
Not Available
10
Gasket ring
431089
$2,55 Unit Price incl. VAT
11
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
12
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
13
Snap ring
483226
$0,72 Unit Price incl. VAT
14
Radial bearing 17x30
483261
Not Available
14
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
15
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
18
Clutch drum
8440494
$26,86 Unit Price incl. VAT
18
Clutch drum
844049
Not Available
19
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
20
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
